Download the model with reinforced concrete slabs with different FE mesh sizes here, and open it with the FEA software RFEM.
This model is used in the free webinar "The Most Common User Errors with RFEM and RSTAB" presented in German version on January 28, 2021 (February 4, 2021 in English).
Model Used in

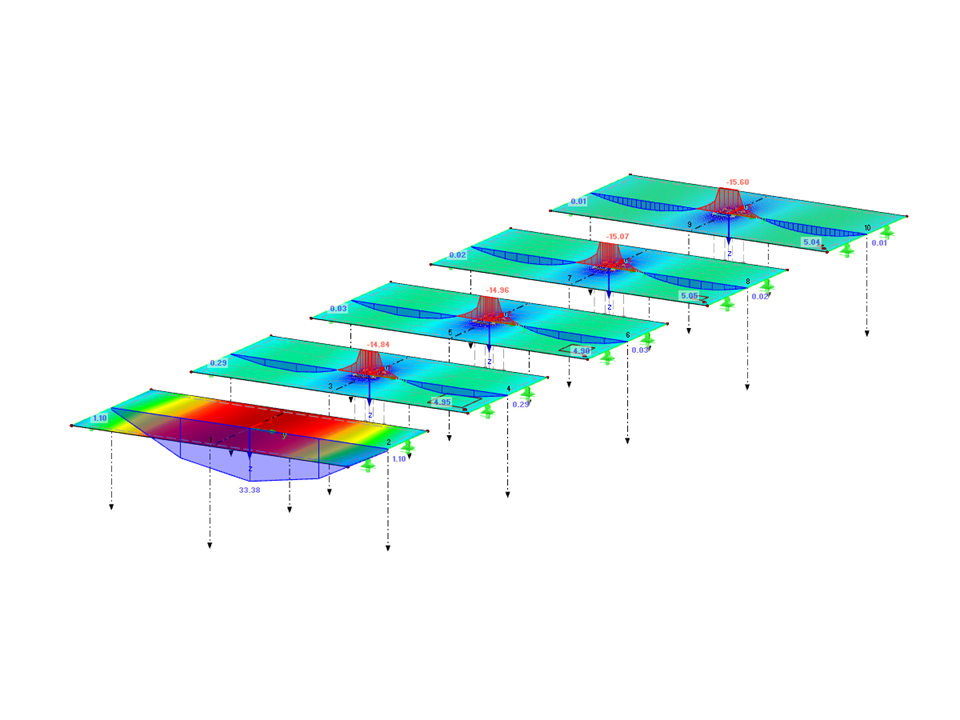

Reinforced Concrete Slabs with Different FE Mesh Sizes
| Number of Nodes | 24 |
| Number of Lines | 20 |
| Number of Members | 0 |
| Number of Surfaces | 5 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 45.000 tons |
| Dimensions (Metric) | 21.000 x 0.000 x 6.000 m |
| Dimensions (Imperial) | 68.9 x 0 x 19.69 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
