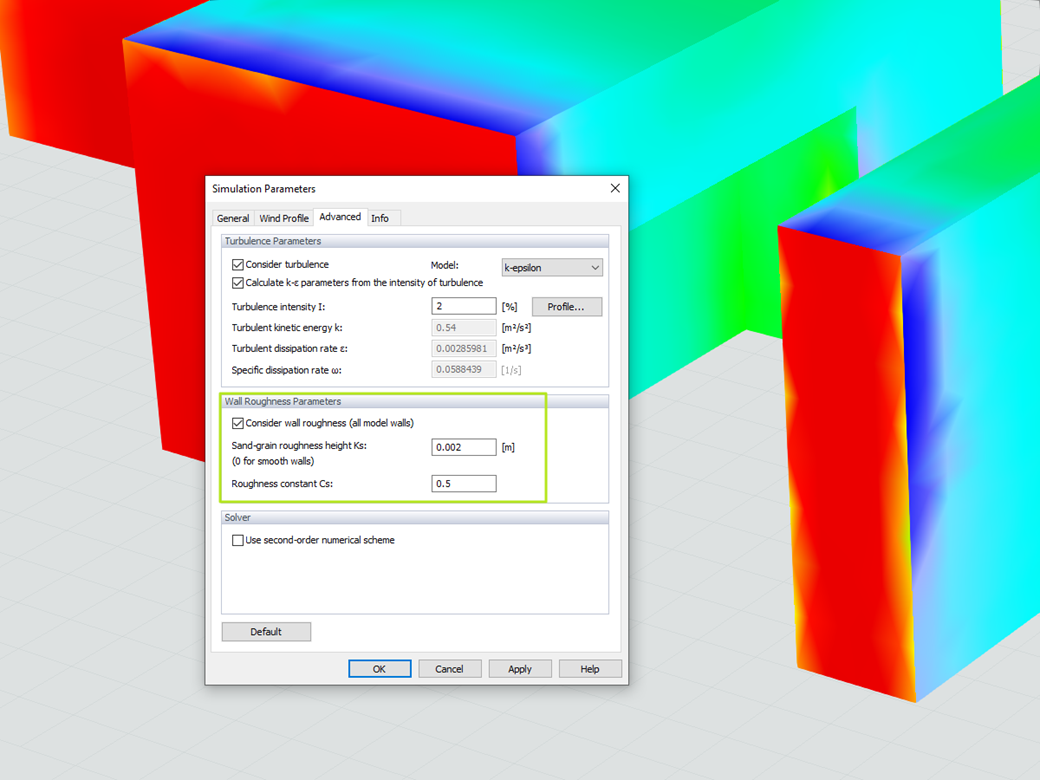

Utilize the RWIND Simulation program to consider a surface roughness of the model surface by applying a modified wall boundary condition. The numerical model is based on the assumption that grains with a certain diameter are arranged homogeneously on the model surface, similar to sandpaper. The grain diameter is described with the parameter Ks and the distribution with the parameter Cs. By considering the wall roughness, the numerical flow simulation can capture reality more closely.
Considering Rough Model Surfaces in RWIND Simulation
Duration: 00:00:58 min
Duration: 00:00:09 min
Duration: 00:01:05 min
Duration: 00:01:00 min
Duration: 00:01:18 min
General
Duration: 00:01:51 min
Duration: 00:01:20 min
Duration: 00:00:22 min
General
Duration: 00:01:02 min
Validating CFD simulations with experimental data enhances accuracy by comparing simulation outcomes with real-world conditions. This process identifies discrepancies, allowing adjustments to enhance model reliability. Ultimately, it builds confidence in the simulation's ability to predict wind load scenarios.
Validating CFD simulations with experimental data enhances accuracy by comparing simulation outcomes with real-world conditions. This process identifies discrepancies, allowing adjustments to enhance model reliability. Ultimately, it builds confidence in the simulation's ability to predict wind load scenarios.
Creating a validation example for Computational Fluid Dynamics (CFD) is a critical step in ensuring the accuracy and reliability of simulation results. This process involves comparing the outcomes of CFD simulations with experimental or analytical data from real-world scenarios. The objective is to establish that the CFD model can faithfully replicate the physical phenomena it is intended to simulate.
Wind direction plays a crucial role in shaping the outcomes of Computational Fluid Dynamics (CFD) simulations and the structural design of buildings and infrastructures. It is a determining factor in assessing how wind forces interact with structures, influencing the distribution of wind pressures, and consequently, the structural responses.
In RWIND Simulation, it is possible to divide the model in different zones. This allows for different surface roughness to be assigned to the zones. In addition, local results can be better evaluated.
.png?mw=512&hash=326ddb2b4595d26528f3df596e3b8cf487887f2d)

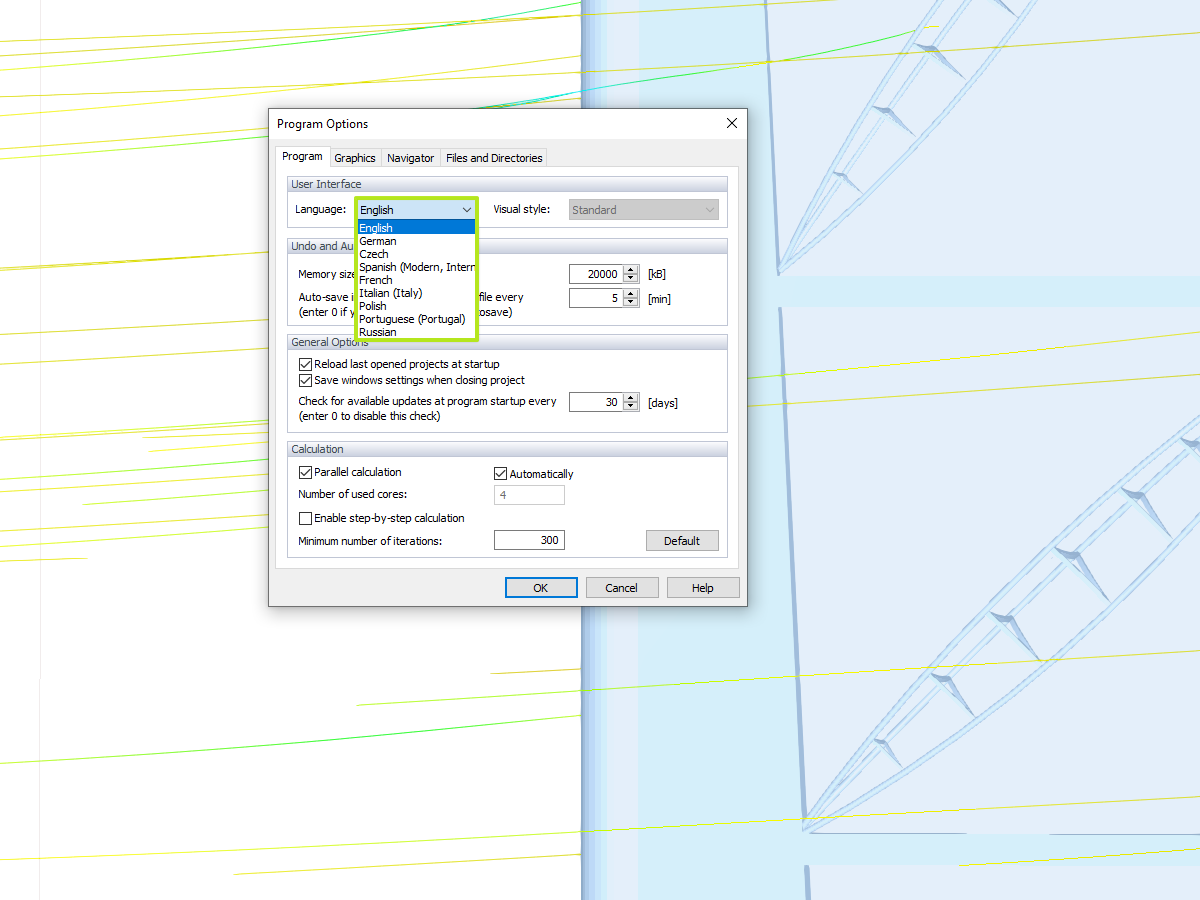

The RWIND Simulation program for generating wind loads based on CFD can be utilized in different languages; for example, in:
- German
- English
- Czech
- Spanish
- French
- Italian
- Polish
- Portuguese
- Russian

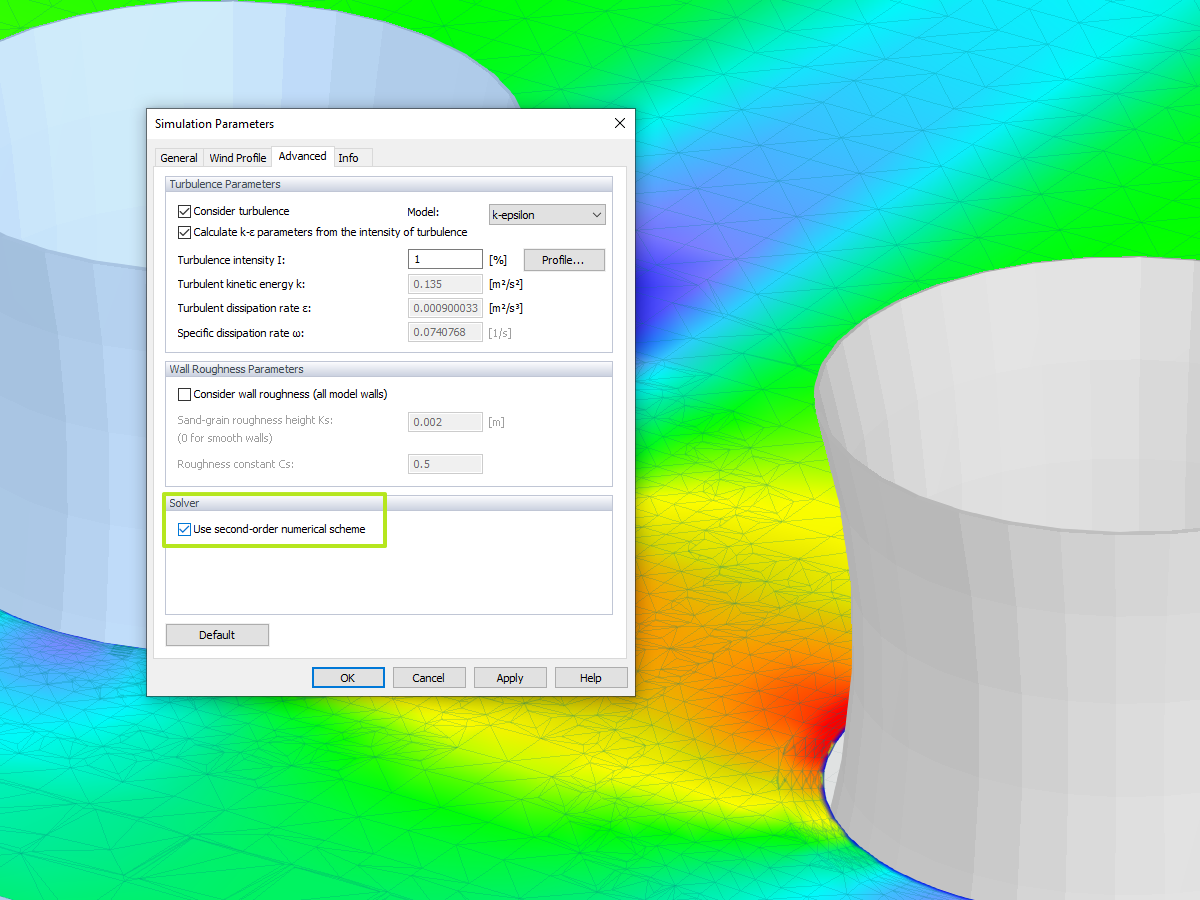

The volume space in RWIND Simulation can optionally be discretized with the second-order theory between the cells.
This extended approach usually results in more accurate results despite poorer convergence behavior.

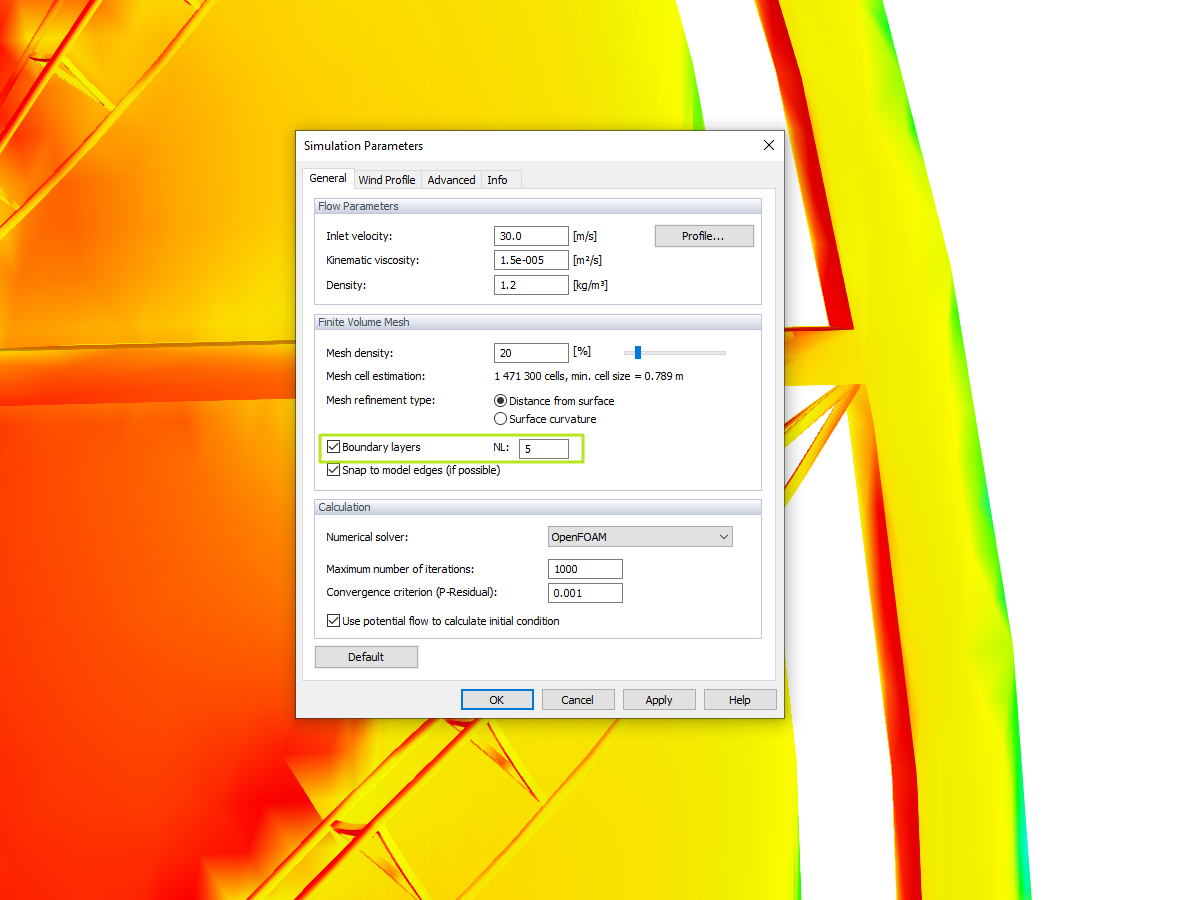

The meshing algorithm of RWIND Simulation uses the boundary layer option to mesh the area near the model surface with a voluminous layer mesh. The number of layers is controlled by a user-defined parameter.
