Container Structure at Entrance to Motor Enclave in Tampa, Florida, USA

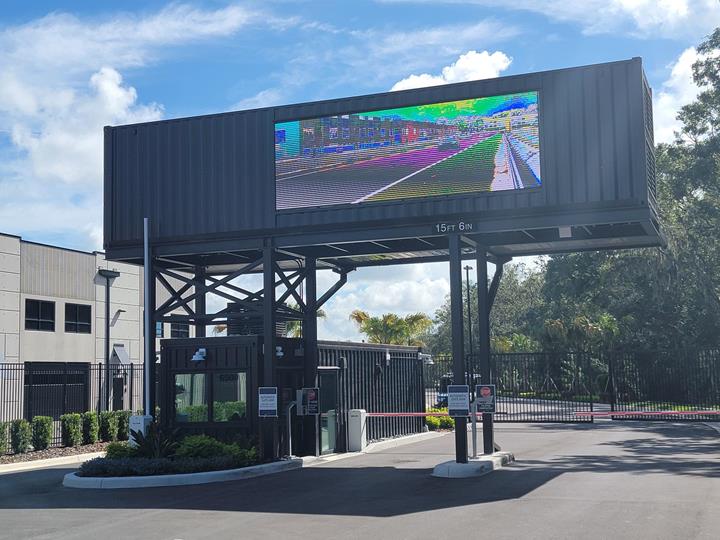

A distinctive entry point gantry structure welcomes motorsport enthusiasts of The Motor Enclaves at Tampa, Florida. The gantry structure is made of two 40-foot-high cube containers and steel frames.

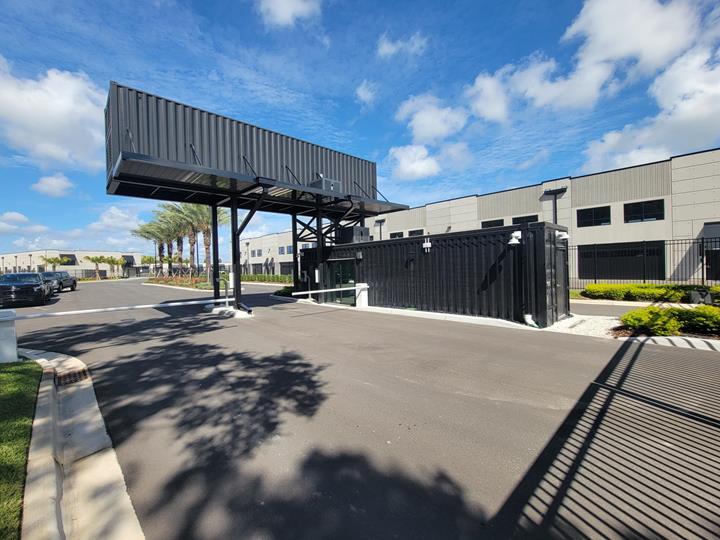

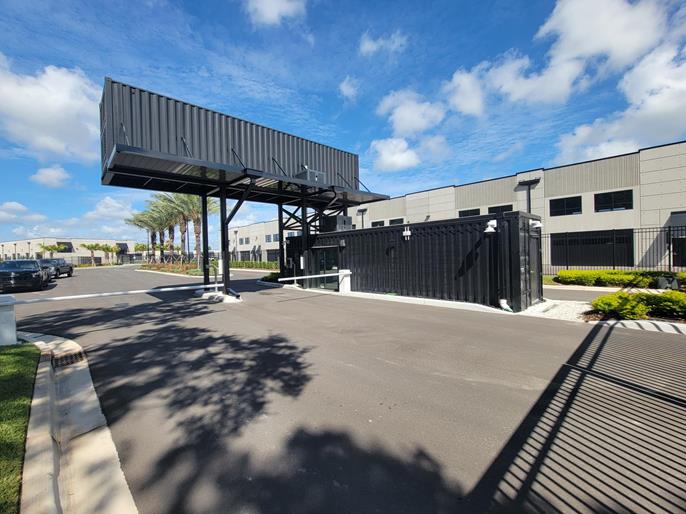

The lower 40-foot container is an entry check point office. An oversize LCD screen is mounted at the upper 40-foot container.

Structural Analysis

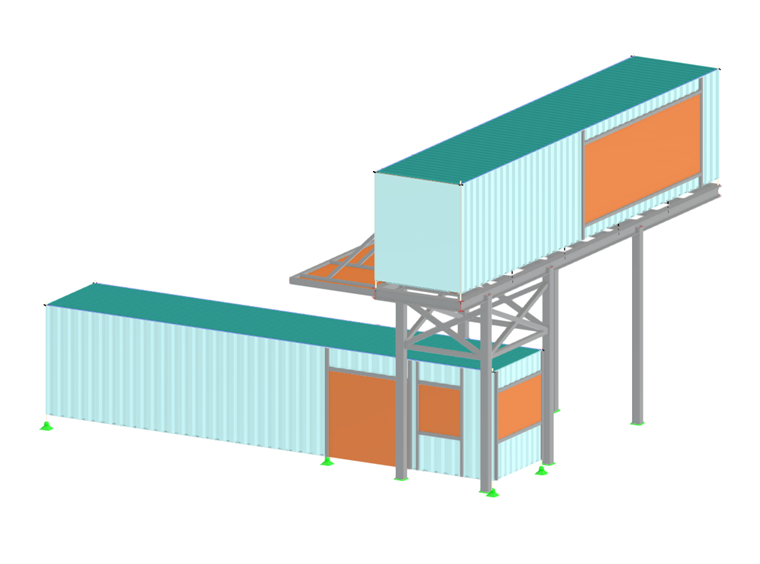

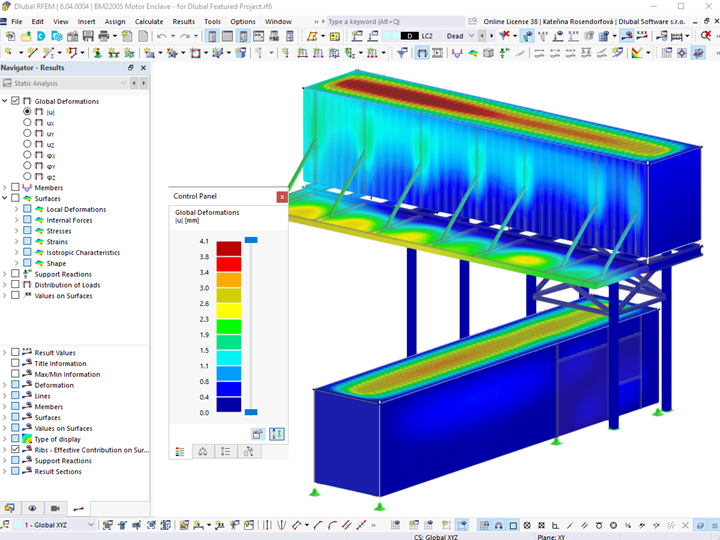

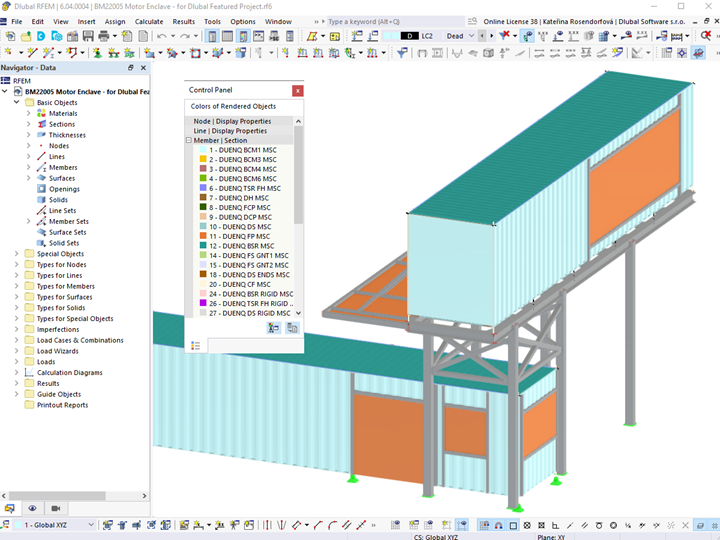

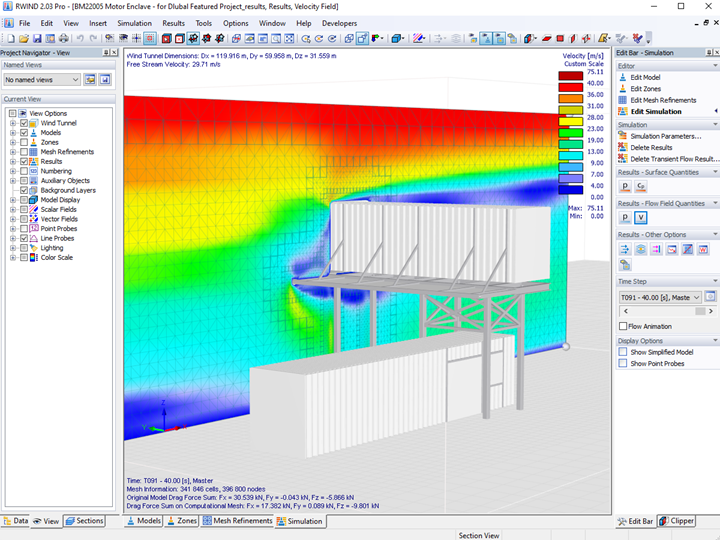

RFEM was used to create the complex finite element model of the container structure, consisting of various surface elements and member sections. SHAPE-THIN was used to build custom shapes for the container member cross-sections. Due to the unique shape of the container structure configuration, RWIND is used to generate accurate wind loads with 360 degrees at 45-degree increments. The steel design check of the steel structure was performed using the RF-STEEL AISC add-on module.

Location 6500 Motor Enclave Wy
Tampa, FL 33610, USA
Structural Design Modular Structural Consultants LLC
www.modularconsultant.com
Investor The Motor Enclave
themotorenclave.com
Container Manufacturing BMarko Structures
www.bmarkostructures.com


Project Specifications

Model Data

Number of Nodes 3054
Number of Lines 5705
Number of Members 1339
Number of Surfaces 1669
Number of Solids 0
Number of Load Cases 22
Number of Load Combinations 9
Number of Result Combinations 2
Total Weight 14.624 tons
Dimensions (Metric) 12.192 x 7.772 x 12.192 m
Dimensions (Imperial) 40 x 25.5 x 40 feet
