Question
When I create an image for a time course in DYNAM Pro and add it to the printout report using the clipboard, this image is very blurred. What can I do?
Answer:

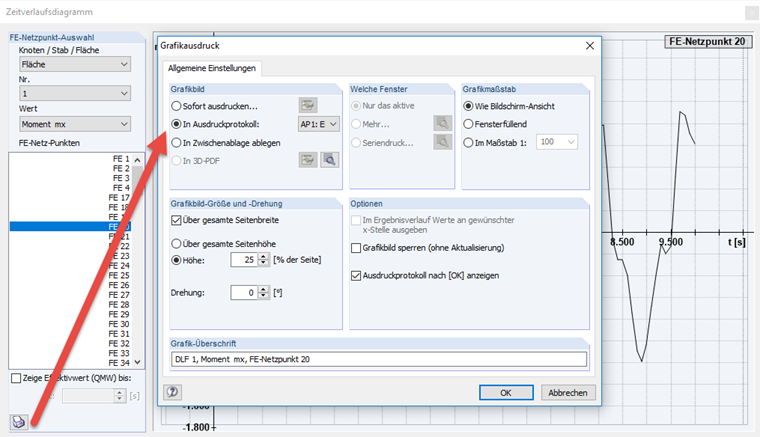

In this case, you can use the option to print the graphic of the time course diagram directly into the printout report. Proceed as described in the image.
