Extension of Industrial Complex in Mayenne, France

The expansion of the prefabricated module plant is a key milestone in Rapidhome's development, allowing the company to increase its production capacity to meet growing demand. GH – Girard Hervouet, a customer of Dlubal Software, was responsible for the frame, roofing, and cladding works for this project.

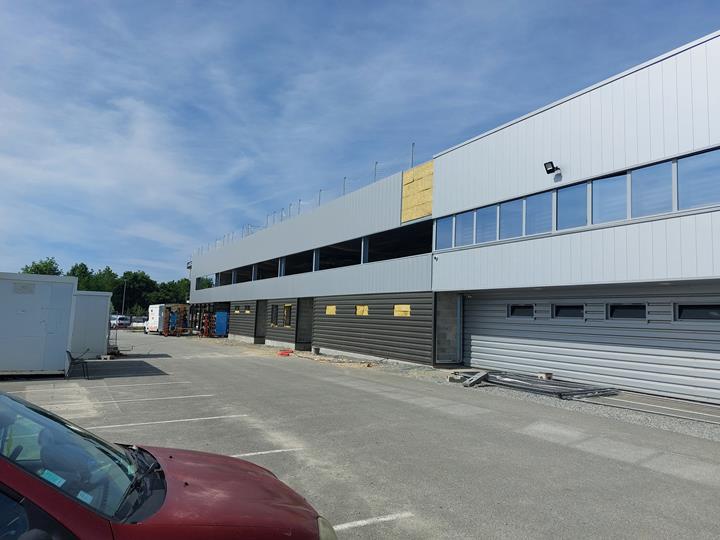

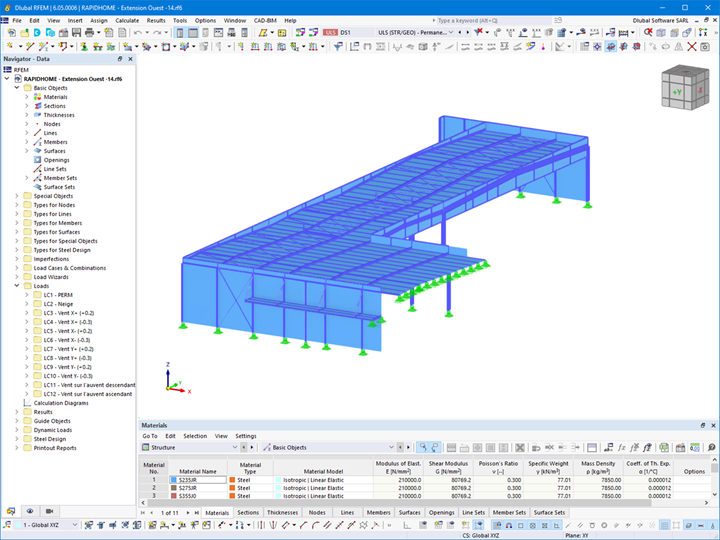

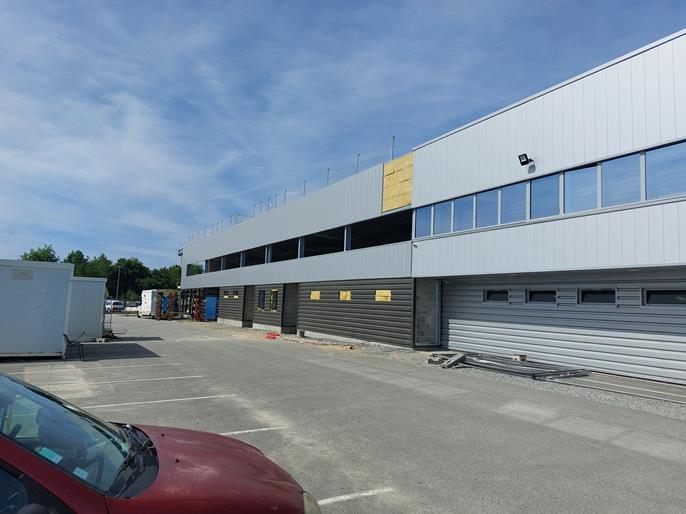

With an area of almost 7,000 m² (~ 75,347 ft²), this extension demonstrates Rapidhome's ongoing commitment to providing quality solutions in the field of modular construction. It is based on a carefully designed and optimized steel frame structure. The entire steel structure structure amounting to 350 tons was modeled and calculated in RFEM 6.

Technical Details

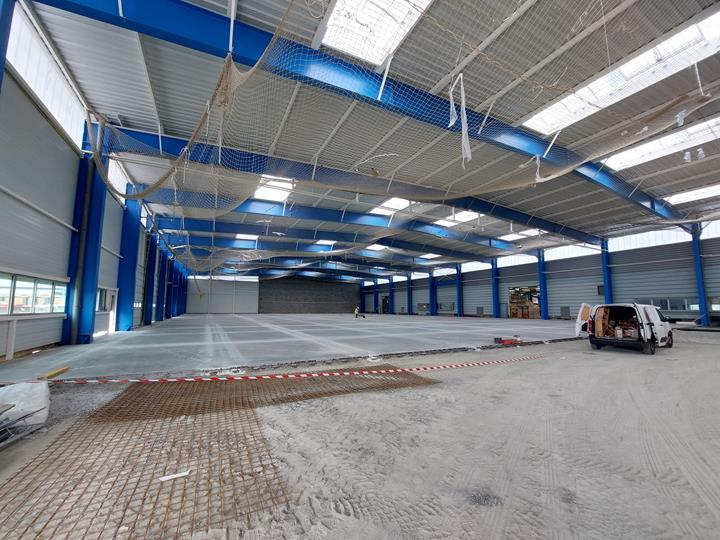

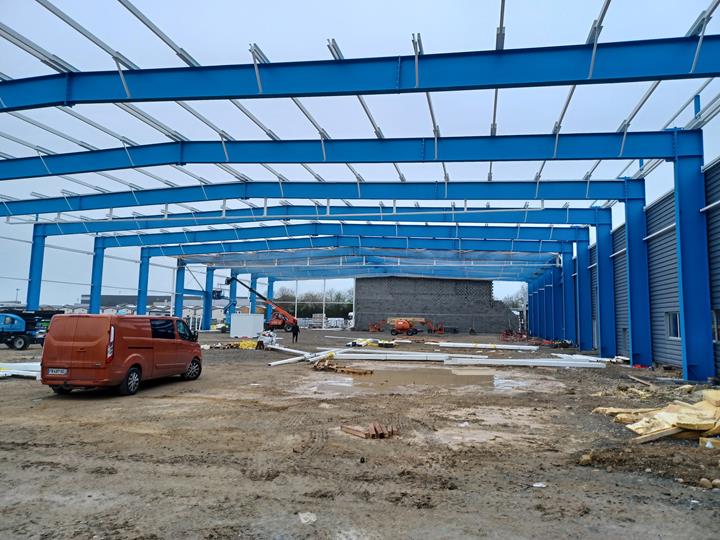

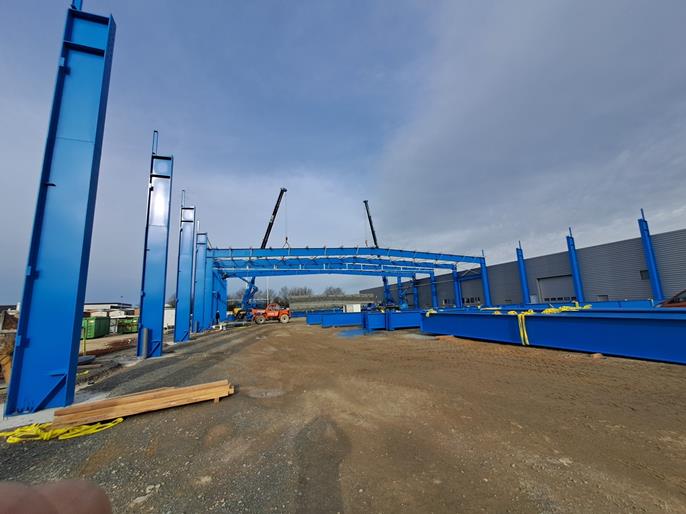

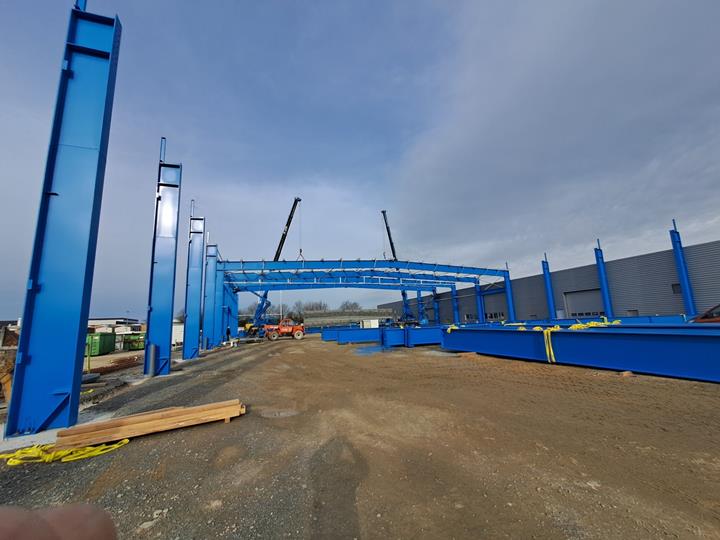

The main frames, with an impressive span of 32 m (~ 105 ft), are made of PRS, a solution that combines lightness and strength, providing a solid base for the structure. This technology not only reduces the weight of the structure, but also optimizes manufacturing and installation costs while ensuring long-term durability.

The use of PRS frames also provides great design flexibility, allowing the structure to be adapted to the specific needs of the prefabricated module plant. This adjustability is key to meeting the varying requirements of construction projects and to maximizing the company's operating efficiency.

By focusing on quality and sustainability, this expansion reinforces the company's standing as a market leader while providing customers with premium construction solutions tailored to their requirements.
Location
480 rue Constant Rousseau
53100 Mayenne
France


Project Specifications

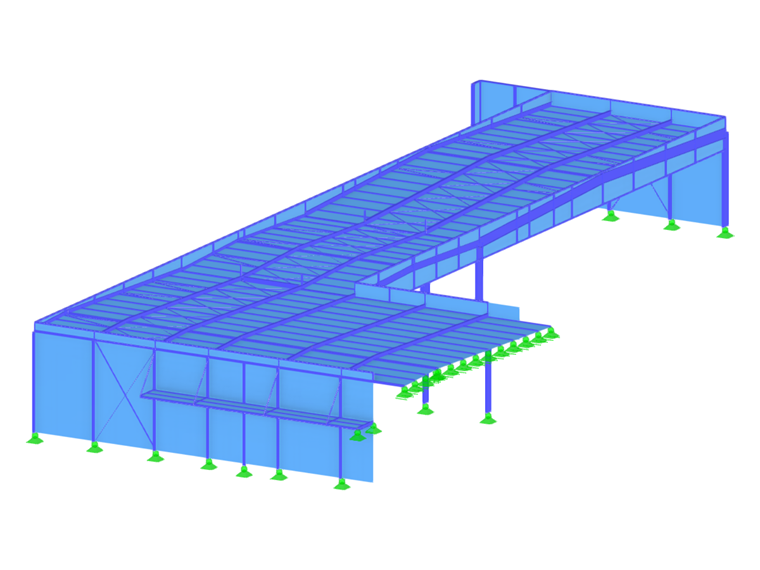

Model Data

Number of Nodes 566
Number of Lines 717
Number of Members 550
Number of Surfaces 59
Number of Solids 0
Number of Load Cases 12
Number of Load Combinations 646
Number of Result Combinations 0
Total Weight 134.813 tons
Dimensions (Metric) 48,718 x 11,600 x 114,430 m
Dimensions (Imperial) 159.84 x 38.06 x 375.43 feet
