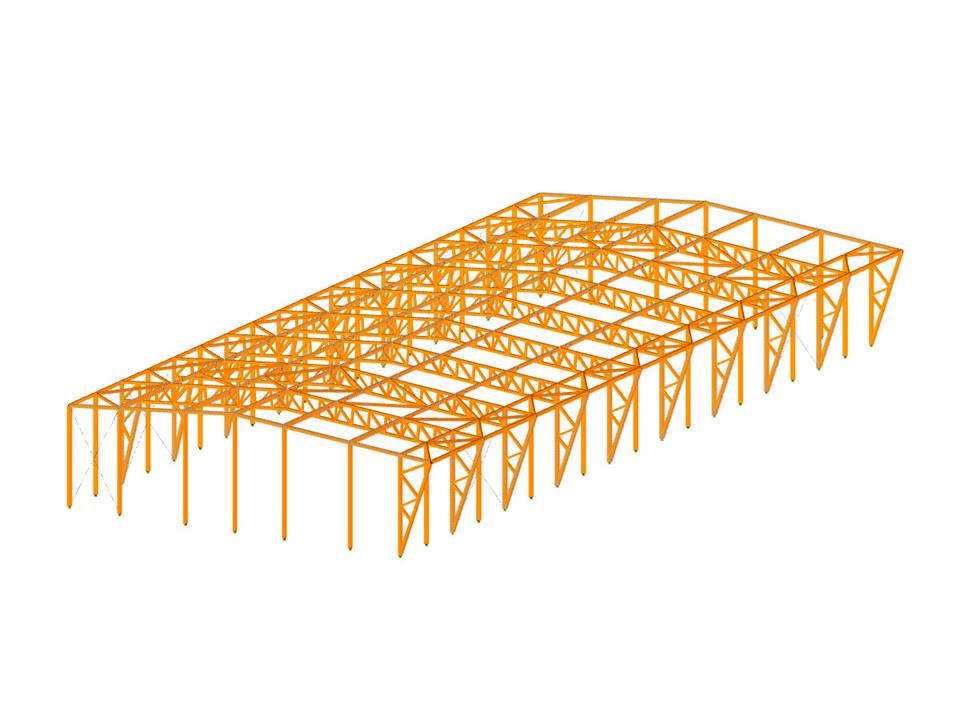

Timber Industrial Workshop
Design, Structural Analysis, Manufacturing, and Assembly
Maderas Besteiro
Timber Industrial Workshop
No Download Possible
Customer Project / View Only
| Number of Nodes | 562 |
| Number of Lines | 1164 |
| Number of Members | 1164 |
| Number of Load Cases | 33 |
| Number of Result Combinations | 89 |
| Total Weight | 39.310 tons |
| Dimensions (Metric) | 29.575 x 66.770 x 8.621 m |
| Dimensions (Imperial) | 97.03 x 219.06 x 28.28 feet |
| Program Version | 5.30.02 |
