Malahat SkyWalk Viewing Tower and Walkway on Vancouver Island, BC, Canada

The accessible outdoor recreation structure Malahat SkyWalk viewing tower and walkway is an exciting new tourism project located on southern Vancouver Island.

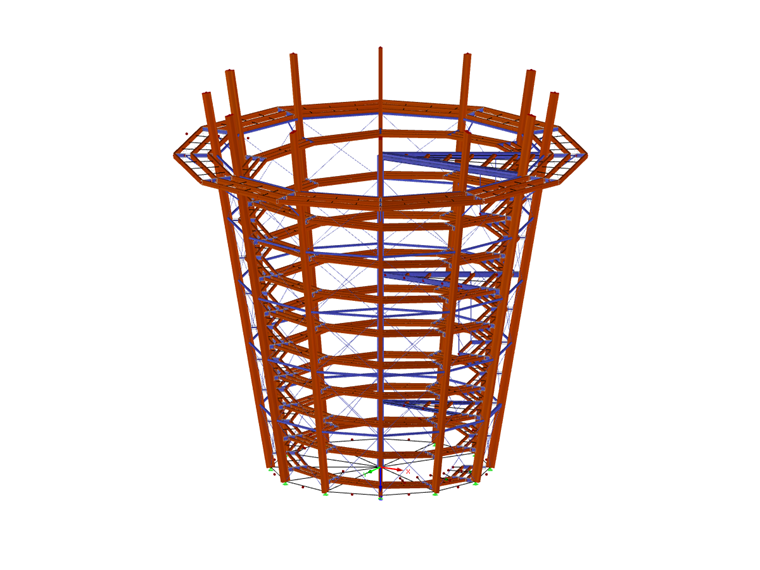

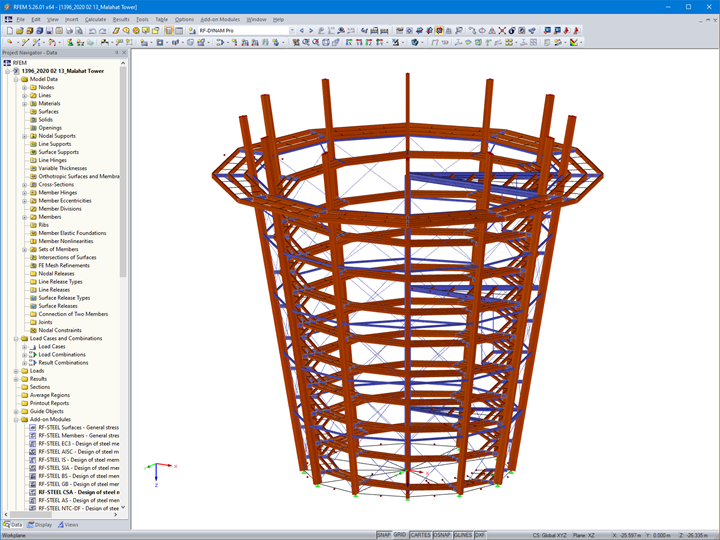

Malahat SkyWalk Lookout Tower, 3D RFEM Model (© Aspect Structural Engineers)
601x

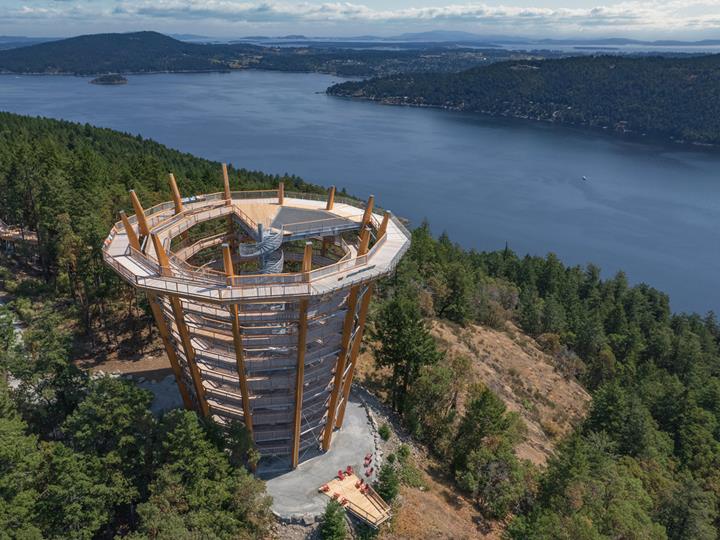

Malahat SkyWalk Lookout Tower

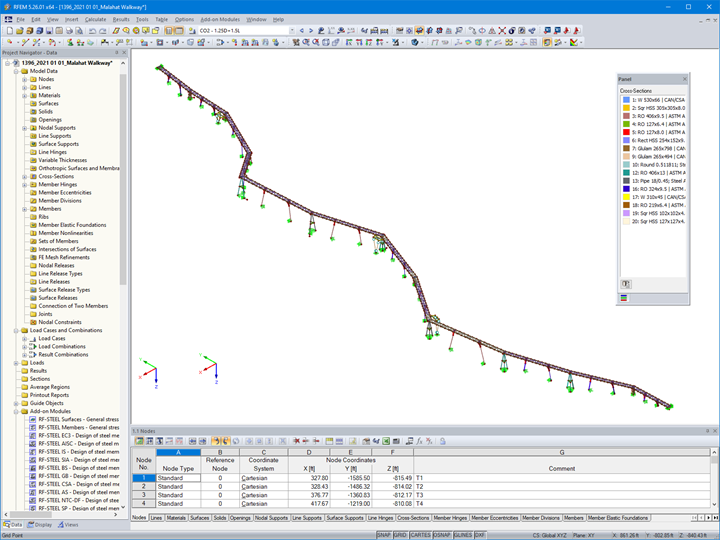

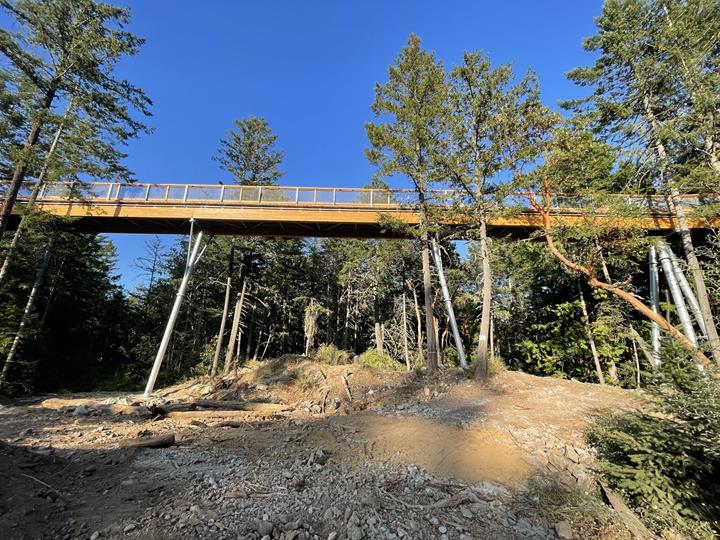

Das einstöckige Besucherzentrum besteht aus einem Vollholz- und Leichtholzrahmen und beinhaltet ein Café. Von dort führt ein 650 m langer Baumwipfelpfad die Besucher auf eine eindrucksvolle sanft geschwungene spiralförmige Rampe auf 30 m hinauf, um die herrliche Aussicht auf Finlayson Arm und die fernen Coast Mountains zu genießen.

Konstruktion

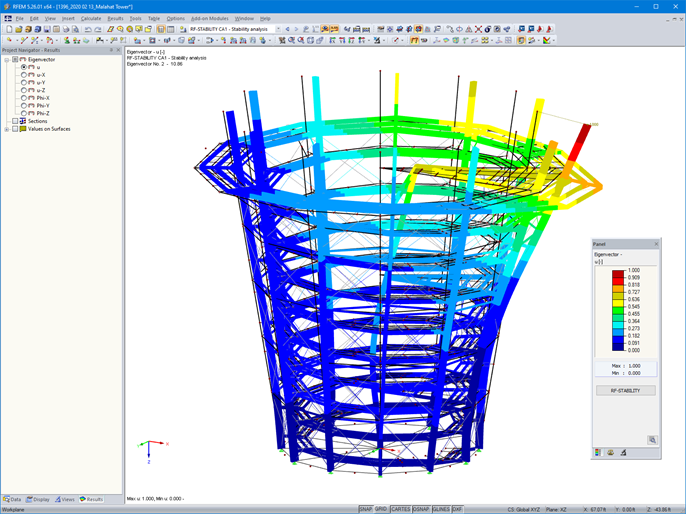

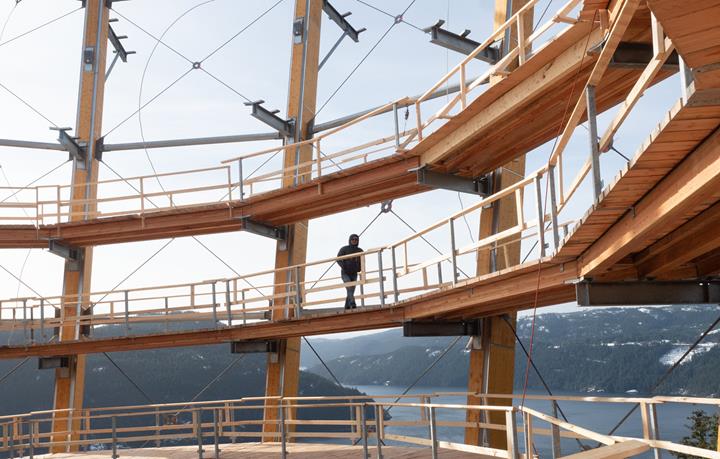

Die Hauptstruktur besteht aus Brettschichtholz-Stützen mit Kreuzverstrebungen aus Stahl rundum. Konsolträger an diesen Stützen tragen einen 600 m langen spiralförmigen Wanderweg, der die Besucher nach oben zur Aussichtsplattform führt. Eine feuerverzinkte, mittig angebrachte Wendeltreppe aus Stahl dient als Notausgang.

Das Projekt zielt darauf ab, die ökologischen Werte des Parks zu schützen und zu stärken, mit den Ureinwohnern Kanadas zusammenzuarbeiten, öffentliche Nutzung mit ökologischen Werten abzuwägen und Besuchern die Naturschätze und das Kulturerbe näherzubringen.

Location 901 Trans-Canada Hwy
Malahat
BC V0R 2L0
Canada
Client Malahat Skywalk Corp.
malahatskywalk.com
Structural Design Aspect Structural Engineers
aspectengineers.com
Architecture Muroch & Company Architecture & Planning
Design Assist Contractor Kinsol Timber Systems
www.kinsoltimber.com
3D Detailing & Shop Drawings Styxworks
styxworks.com

Project Specifications

Model Data

Number of Nodes 1177
Number of Lines 2300
Number of Members 1930
Number of Load Cases 19
Number of Load Combinations 36
Number of Result Combinations 9
Total Weight 172,174 t
Dimensions (Metric) 37.614 x 37.614 x 35.372 m
Dimensions (Imperial) 123.41 x 123.41 x 116.05 feet
Program Version 5.26.01
