Download the model of a parameterized IH4.1 A 26 20 tP30 connection here, and open it with the FEA software RFEM.
This model was used for technical article 1678, among others.

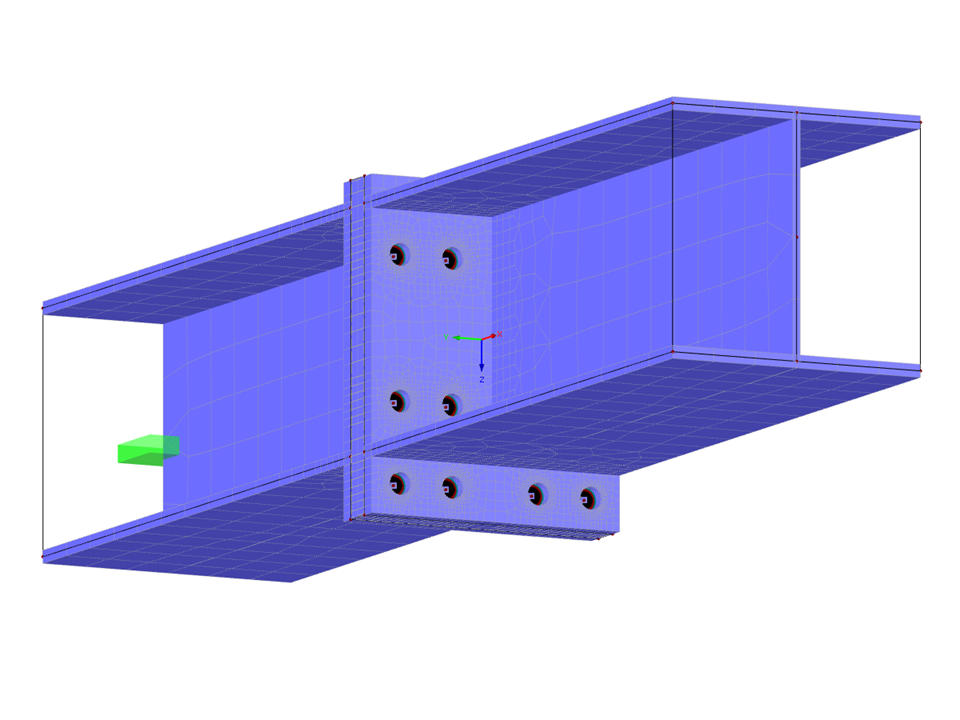

Parameterized FE Model with Protruding End Plate for Design of Rigid End Plate Joints
| Number of Nodes | 925 |
| Number of Lines | 970 |
| Number of Members | 877 |
| Number of Surfaces | 26 |
| Number of Solids | 1 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 2 |
| Total Weight | 0.124 tons |
| Dimensions (Metric) | 1.390 x 0.260 x 0.324 m |
| Dimensions (Imperial) | 4.56 x 0.85 x 1.06 feet |
| Program Version | 5.23.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
