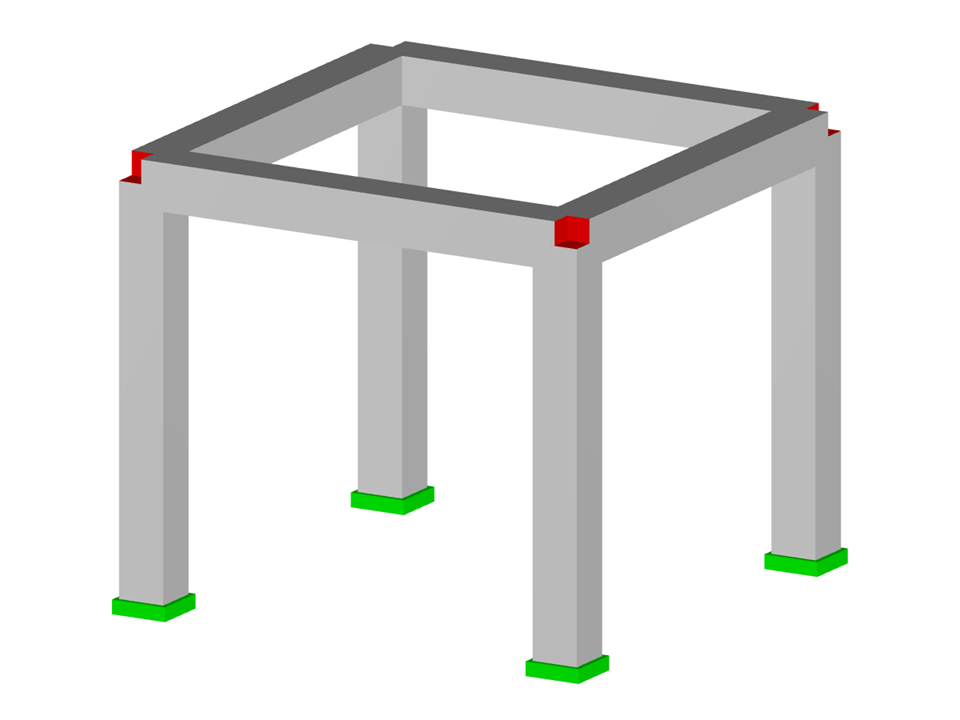

This model was used to explain the various graphical representations of the foundation dimensions in RFEM and RSTAB.
Model Used in
Reinforced Concrete Foundations
| Number of Nodes | 8 |
| Number of Lines | 8 |
| Number of Members | 8 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 22.344 tons |
| Dimensions (Metric) | 4,688 x 4,250 x 4,688 m |
| Dimensions (Imperial) | 15.38 x 13.94 x 15.38 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
