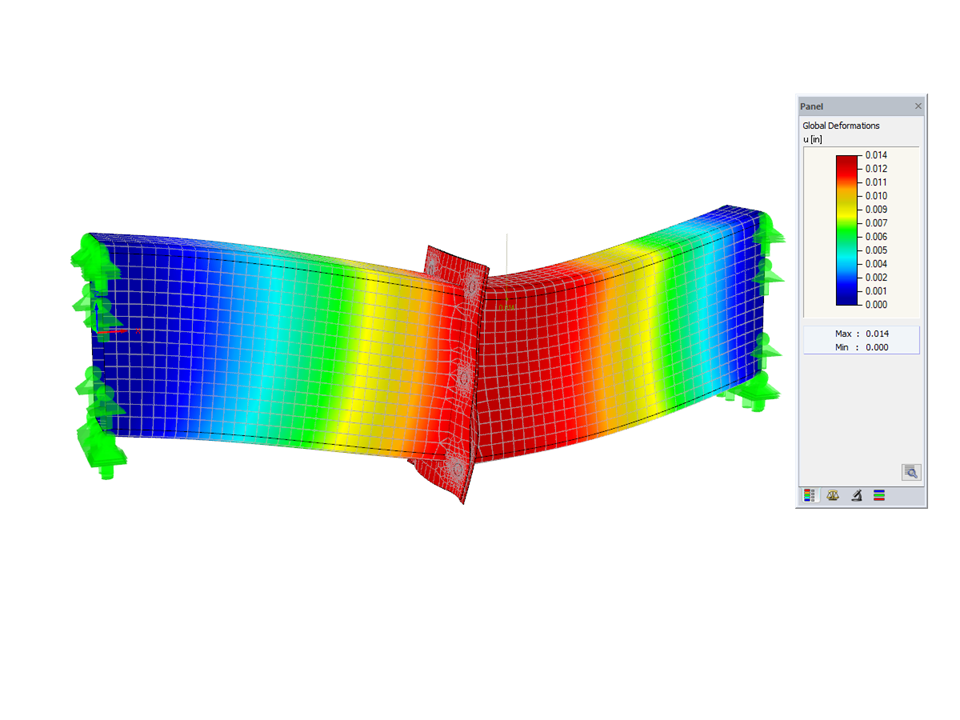

Beam splice modeled in RFEM using a nonlinear contact solid. The webinar in the link below demonstrates the workflow when modeling with contact solids in RFEM.
Nonlinear Contact Solid Beam Splice
Number of Nodes | 107 |
Number of Lines | 84 |
Number of Members | 6 |
Number of Surfaces | 40 |
Number of Solids | 1 |
Number of Load Cases | 1 |
Number of Load Combinations | 0 |
Number of Result Combinations | 0 |
Total Weight | 0.170 tons |
Dimensions (Metric) | 1.532 x 0.508 x 0.356 m |
Dimensions (Imperial) | 5.03 x 1.67 x 1.17 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
