Fire Design of Slabs and Walls According to Simplified Table Method

In the Concrete Design add-on for RFEM 6, you can perform the fire design of reinforced concrete slabs and walls according to the simplified table method (EN 1992‑1‑2, Section 5.4.2 and Tables 5.8 and 5.9).

Feature 002828 | Fire resistance design for slabs and walls using the simplified table method

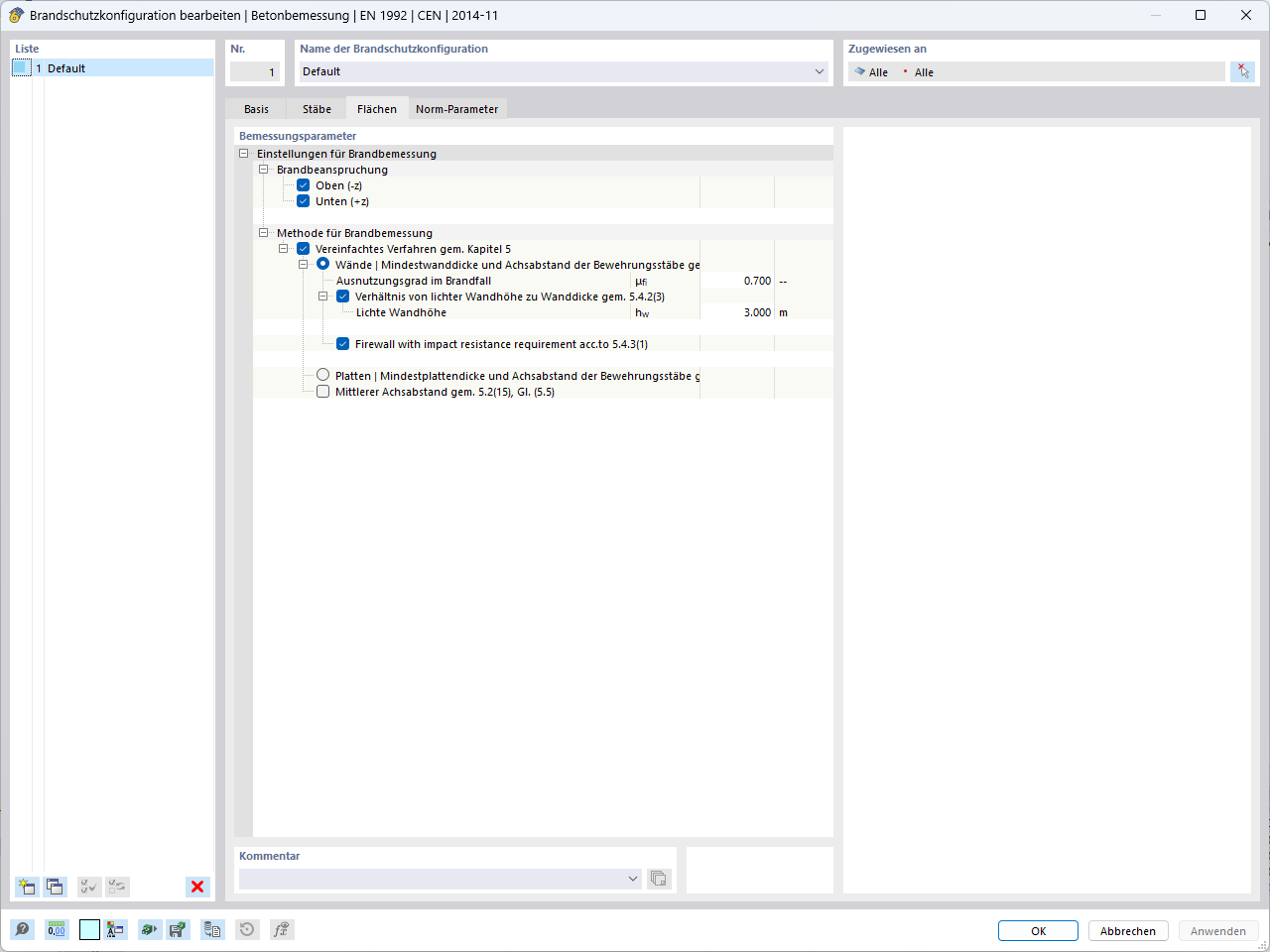

Fire Resistance Design for Surfaces in RFEM
