Design of Member Sets

I have activated Steel Design in my model and defined design types for the members. Why is it impossible to design the parent member set?

Answer:

If you want to design a member set in RFEM 6 or RSTAB 9, it is necessary to activate the design in the definition of the member set. If this is not the case, the member set is interpreted as invalid during the design, and is not taken into account.

FAQ|005202
EN-US | Flag FAQ
FAQ 005202 | I have activated Steel Design in my model and defined design types for the members ...
FAQ 005202 | I have activated Steel Design in my model and defined design types for the members. Why is it impossible to design the parent member set?

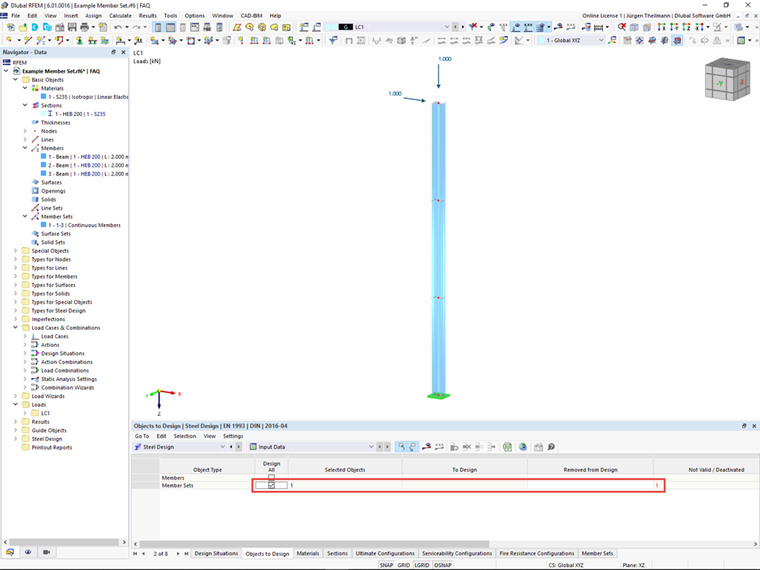

Member Set Not Considered in Design

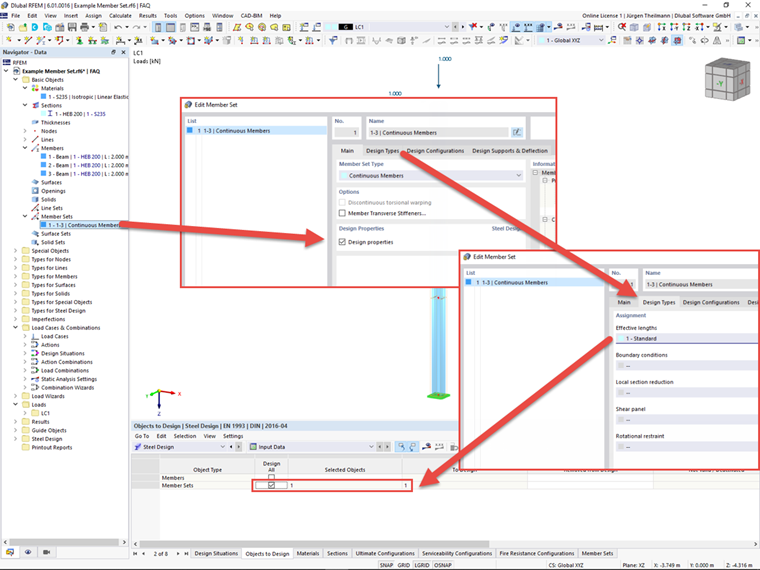

Double-click the member set to edit it. By activating design properties, you can edit them in the additional tabs. Click OK to close the dialog box and the member set becomes available for the design.

FAQ 005202 | I have activated Steel Design in my model and defined design types for the members. Why is it impossible to design the parent member set?
FAQ 005202 | I have activated Steel Design in my model and defined design types for the members. Why is it impossible to design the parent member set?

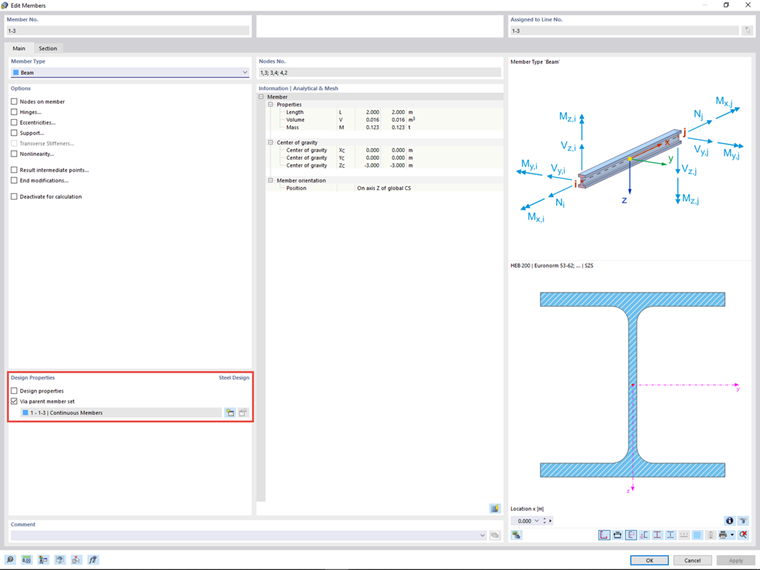

Please note that when activating the design properties of a member set, the subordinate individual members are no longer activated for the design.

FAQ 005202 | I have activated Steel Design in my model and defined design types for the members. Why is it impossible to design the parent member set?
Activating Design Properties, Possible for Single Member or Parent Member Set

;
