Question:
How can I adjust the height and the width of a graphic?
Answer:
You can adjust the height and the width of a graphic in the "Graphic Printout" dialog box → "General Settings" tab → "Graphic Image - Size and Rotation," see the image.

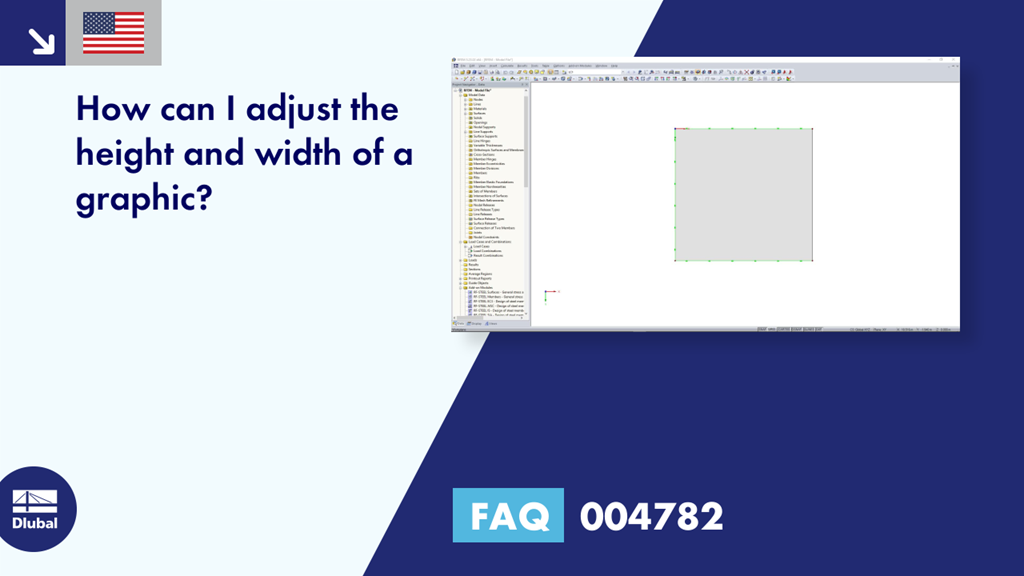

[EN] FAQ 004782 | How can I adjust the height and the width of a graphic?
