Product | RWIND 2

🌬️ Experience Advanced Wind Simulation with RWIND 2 🌬️

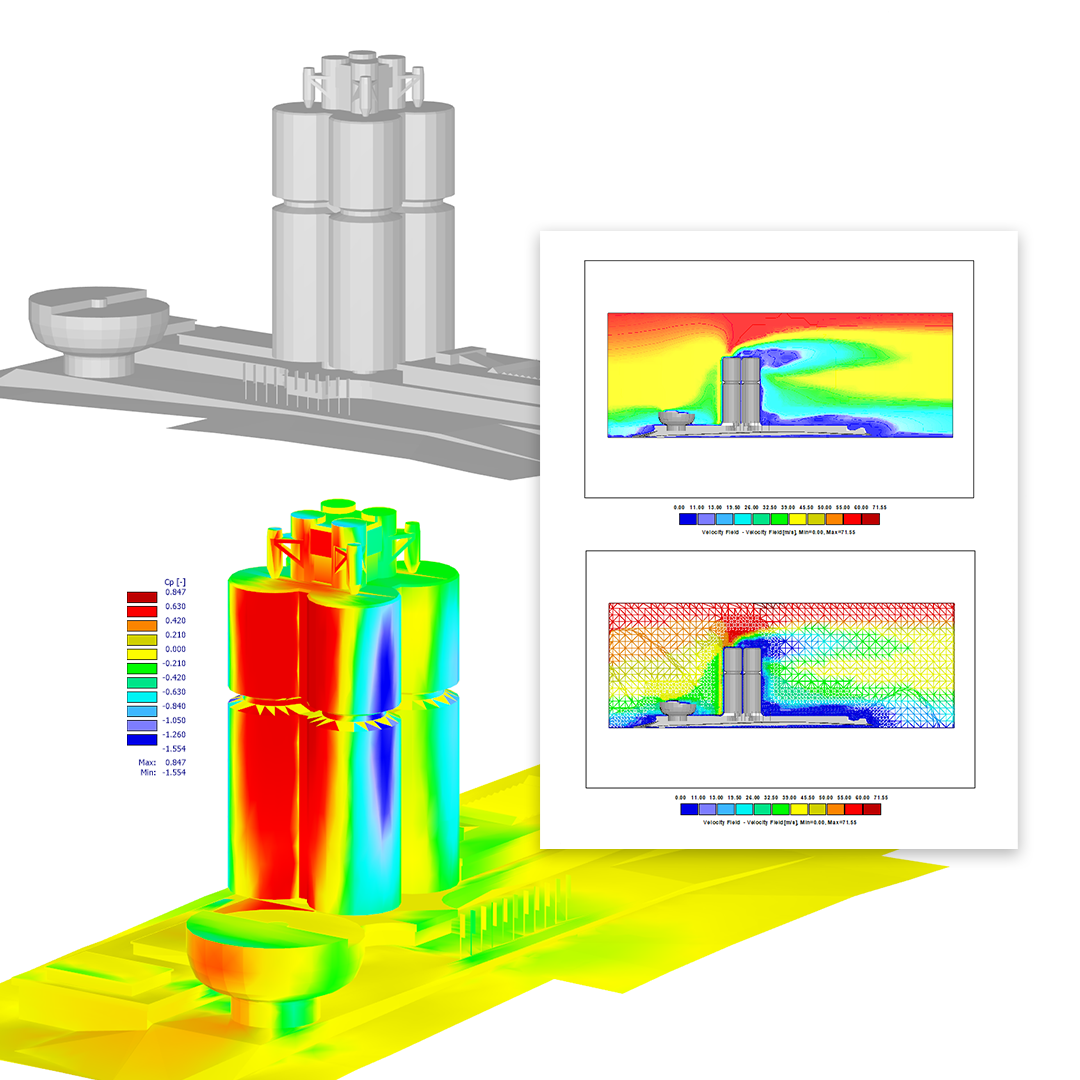

Introducing RWIND 2, your go-to solution for digital wind tunnel simulations! This powerful program numerically simulates wind flows around any building geometry and determines wind loads on surfaces with precision.

🔹 Comprehensive Simulation: Analyze wind flows around any building geometry.
🔹 Accurate Wind Loads: Determine precise wind loads on surfaces.
🔹 Flexible Versions: Available in both Basic and Pro versions to suit your needs.

Developed in collaboration with PC-Progress and CFD Support, RWIND 2 can be used as a stand-alone application or integrated with RFEM and RSTAB for complete structural analysis and design.

Elevate your projects with state-of-the-art wind simulation technology! 🏢💨
