Answer:

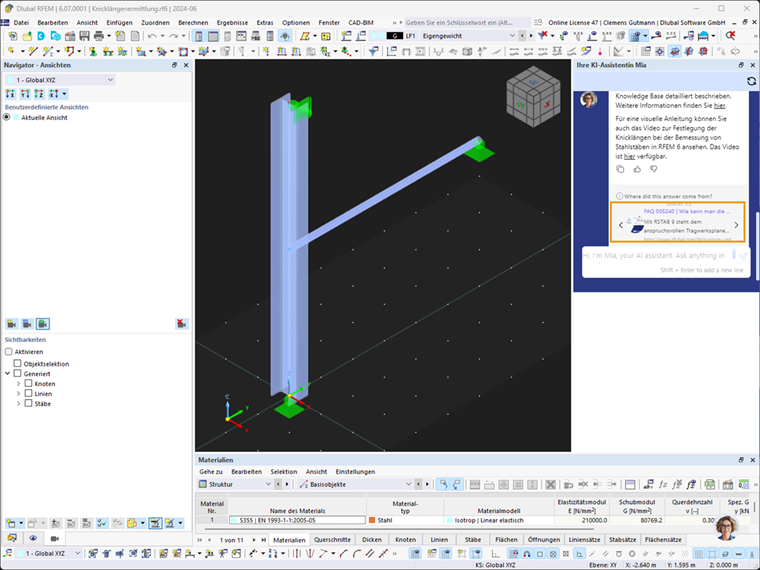

To access the links in Mia's answers in RFEM 6, RSTAB 9, and RSECTION 1, you can use either Ctrl+left-click or click the middle mouse button.
Mia Links
How can I open the links to the sources of Mia's answers in RFEM 6, RSTAB 9, and RSECTION 1?
Author
Mr. Gutmann provides technical support for Dlubal Software customers.
