Answer:

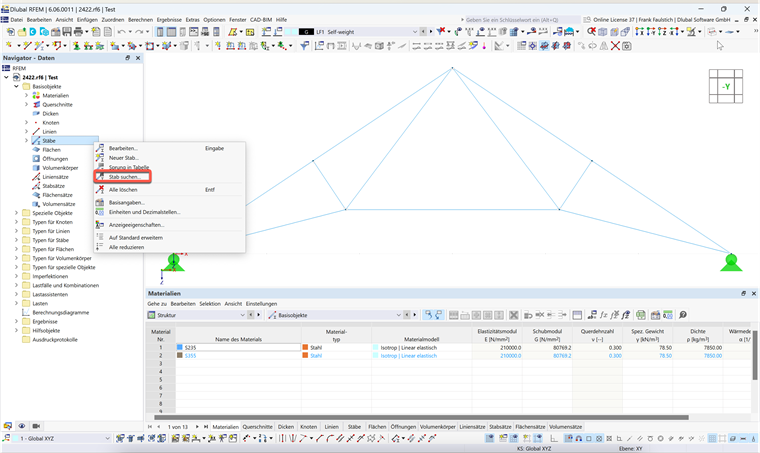

Right-click the "Members" entry in the Data navigator and select "Find Member" from the menu.

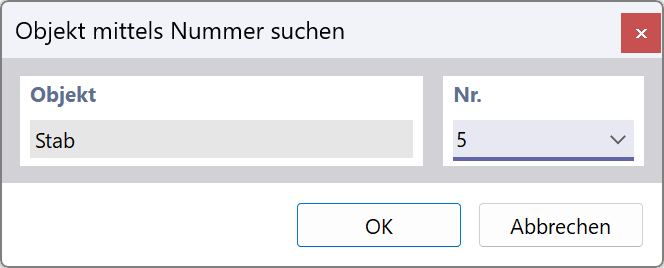

Enter the member number and click OK.

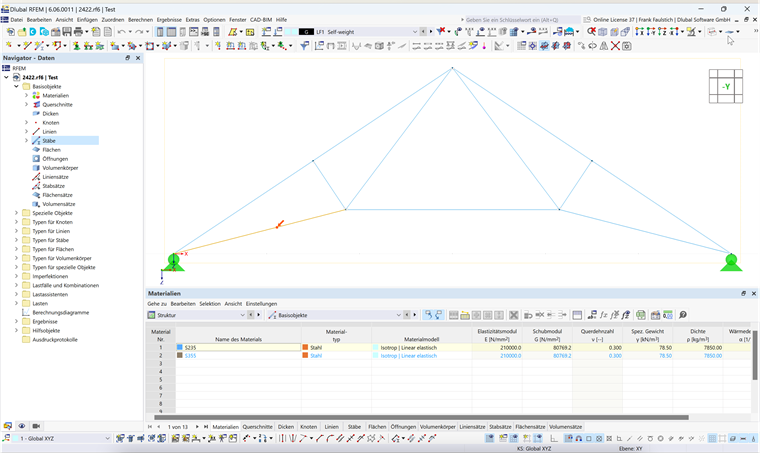

The member is indicated by a red arrow in the graphic.
