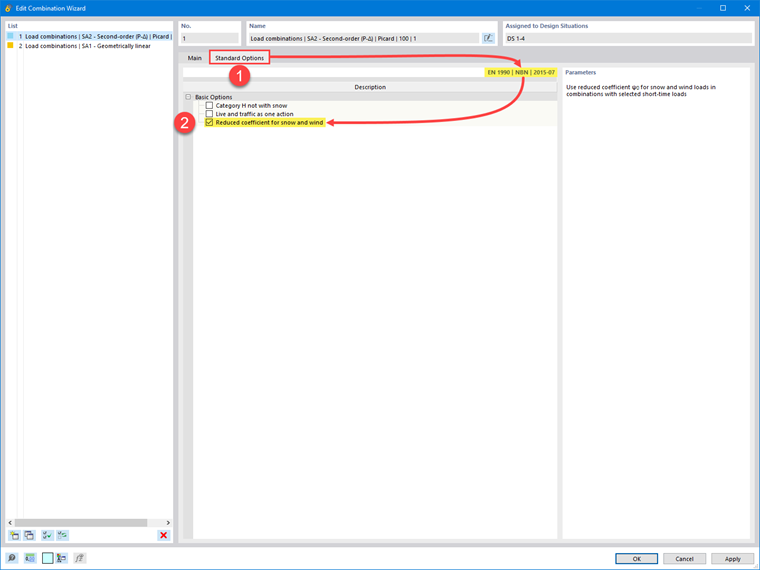

In the "Standard Options" tab of the Combination Wizard (1), activate the "Reduced coefficient for snow and wind" option according to Section 2.3 of NBN EN 1990 (2):

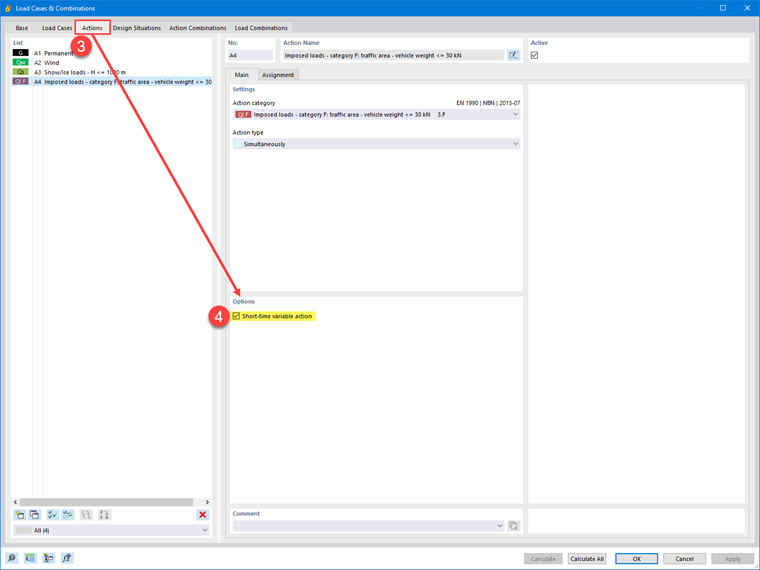

In the "Actions" tab of the Load Cases and Combinations dialog box (3), select the actions from the list to be considered in the short duration and activate the corresponding option (4):
