This model shows the definition of loads in a multilayer composition on a reinforced concrete slab. It shows in a practical way how complex loads can be determined by combining multilayer composition, floor structure, roadway structure, and roof structure. The procedure illustrates the practical implementation and simulation of different load scenarios.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

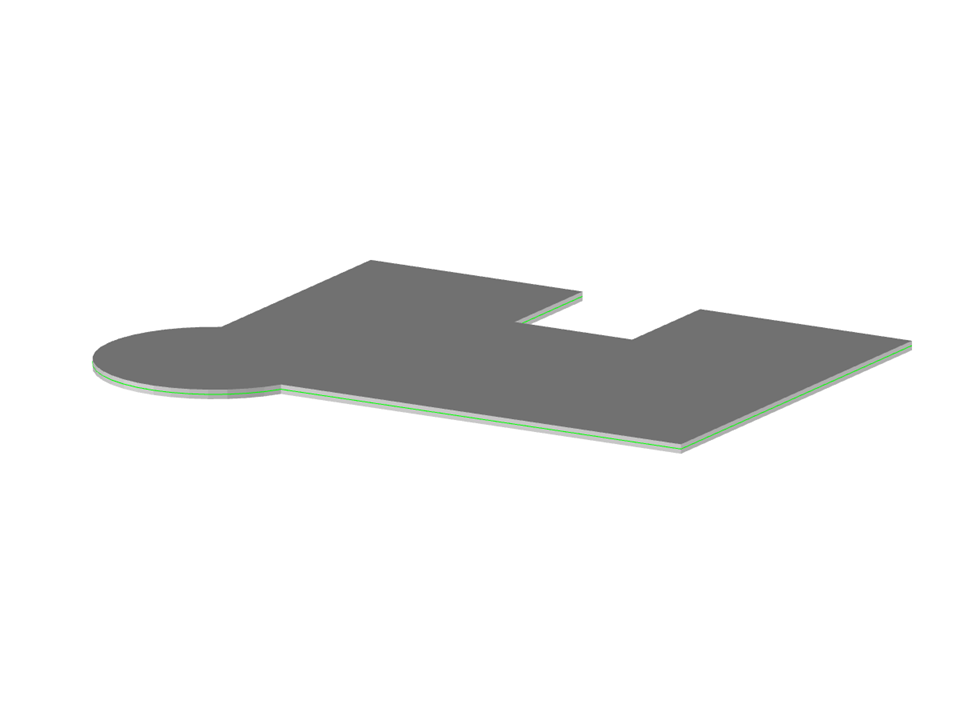

Load Definition of Reinforced Concrete Slab

Number of Nodes 14
Number of Lines 15
Number of Surfaces 3
Number of Load Cases 4
Number of Load Combinations 14
Number of Result Combinations 2
Total Weight 44,052 t
Dimensions (Metric) 12.736 x 9.736 x 0.000 m
Dimensions (Imperial) 41.78 x 31.94 x 0 feet
Program Version 5.23.02

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
