On Al Yas Island, the biggest natural island of the United Arab Emirates, the Ferrari World Theme Park has been built as an amusement and leisure facility.
According to the design concept of Benoy, it includes a Formula 1 fitted circuit, a shopping mall 3,229,173 ft² in size, condominiums, marinas, several luxury hotels, and two golf courses.
The park was built in two phases – phase 1 was completed in 2009, and the second phase was implemented in 2014.
The Ferrari World Theme Park is covered by a vast roof. The entire roof structure, with a surface of about 2,098,963 ft2, consists of a MERO spatial framework. With a total number of approximately 170,000 nodes, it is the largest spatial framework ever built.
MERO-TSK International GmbH & Co. KG, Würzburg, Germany
www.mero-tsk.de

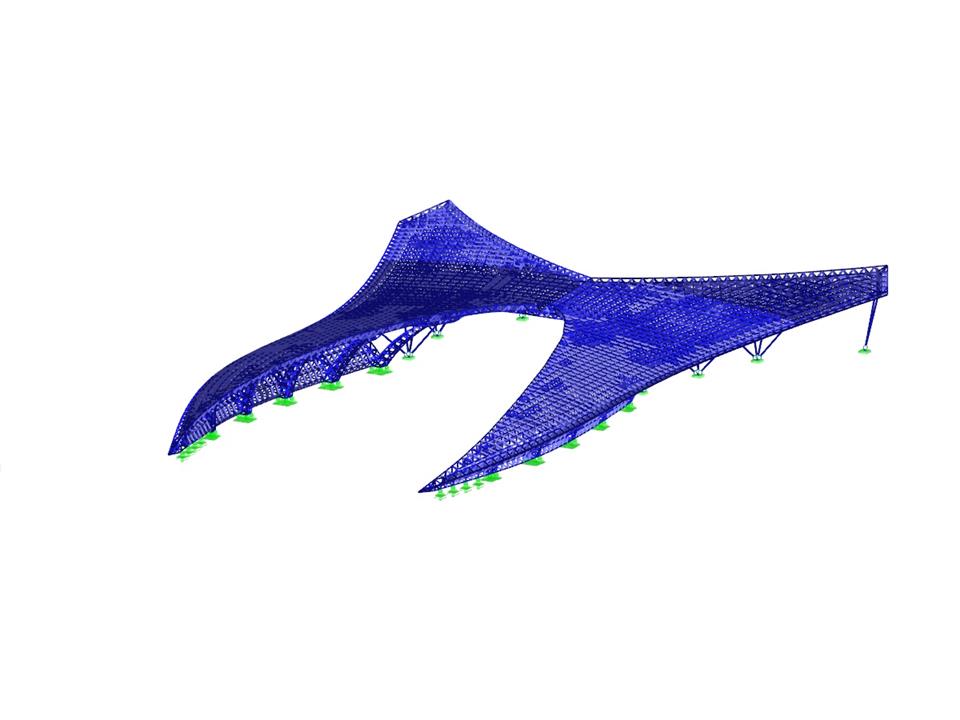

Truss structure in RSTAB (© MERO-TSK)
According to the design concept of Benoy, it includes a Formula 1 fitted circuit, a shopping mall 3,229,173 ft² in size, condominiums, marinas, several luxury hotels, and two golf courses.
The park was built in two phases – phase 1 was completed in 2009, and the second phase was implemented in 2014.
The Ferrari World Theme Park is covered by a vast roof. The entire roof structure, with a surface of about 2,098,963 ft2, consists of a MERO spatial framework. With a total number of approximately 170,000 nodes, it is the largest spatial framework ever built.
MERO-TSK International GmbH & Co. KG, Würzburg, Germany
www.mero-tsk.de
Truss structure in RSTAB (© MERO-TSK)
Steel Roof Structure
No Download Possible
Customer Project / View Only
Number of Nodes | 5687 |
Number of Members | 22828 |
Number of Load Cases | 24 |
Number of Load Combinations | 55 |
Number of Result Combinations | 2 |
Total Weight | 1166.691 tons |
Dimensions (Metric) | 224.402 x 298.688 x 32.338 m |
Dimensions (Imperial) | 736.23 x 979.95 x 106.1 feet |
Program Version | 6.03.16 |
