Freely Adjustable Wind Permeability for Surfaces

Use RWIND 2 Pro to easily apply a permeability to a surface. All you need is the definition of

  • the Darcy coefficient D,
  • the inertial coefficient I, and
  • the length of the porous medium in the direction of flow L,

to define a pressure boundary condition between the front and back of a porous zone. Due to this setting, you obtain the flow through this zone with a two-part result display on both sides of the zone area.

But that's not all. Furthermore, the generation of a simplified model recognizes permeable zones and takes into account the corresponding openings in the model coating. Can you waive an elaborate geometric modeling of the porous element? Understandable – we have good news for you then! With a pure definition of the permeability parameters, you can avoid complex geometric modeling of the porous element. Use this feature to simulate permeable scaffolding, dust curtains, mesh structures, and so on.

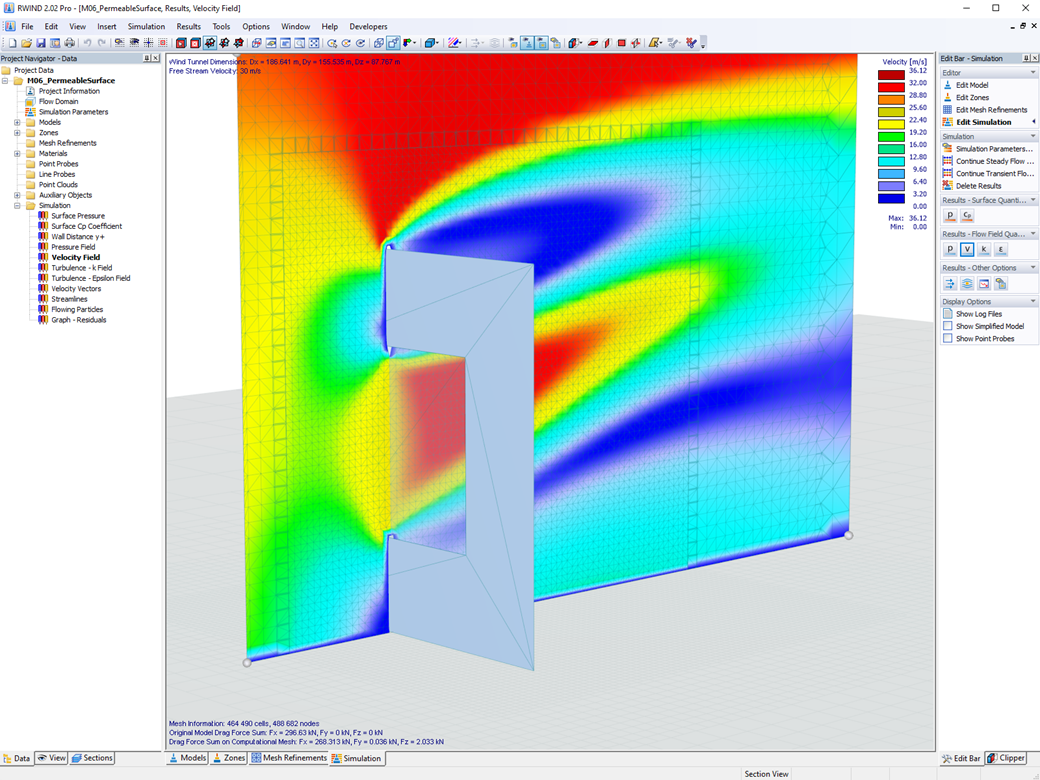

Feature 002551 | Freely Adjustable Wind Permeability for Surfaces
Wind Simulation with Partially Wind-Permeable Surface
