Displaying Negative Shear Stresses in SHAPE-THIN

Can I display negative shear stresses in SHAPE‑THIN?

Answer:

In the graphic, only absolute values are displayed for shear stresses. However, the result table of SHAPE‑THIN also provides the option to read the values of the individual components. The values are displayed there along with the appropriate sign.

FAQ|003173
EN-US | Flag FAQ
FAQ 003173 | Can I display negative shear stresses in SHAPE‑THIN?

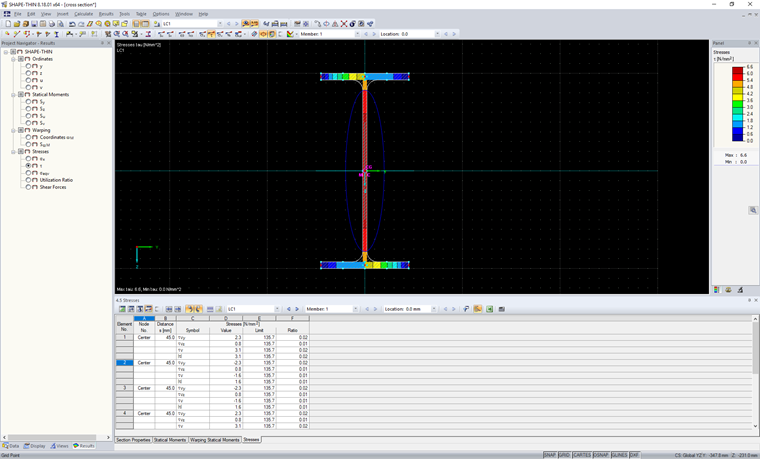

Table View of Shear Stress
