I get the message "Existing torsion -> no stability design possible". Why does this appear and what can I do?
This warning appears because the torsion is not considered in the equivalent member design of Eurocode.
You can neglect the torsion at your own discretion and on your own responsibility by setting the limits in the "Details" dialog box, "Stability" tab.
Or, you can perform the stability analysis for open cross-sections according to the second-order analysis (while considering the warping) with RF‑/STEEL Warping Torsion or RF‑/FE‑LTB (see Links below).
Model Used in

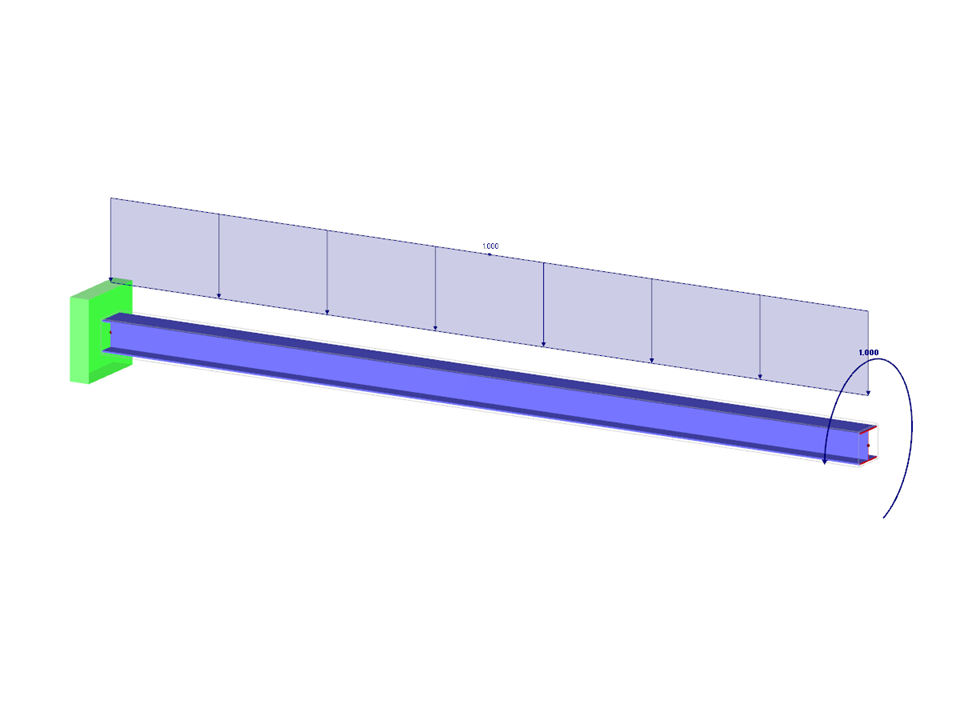

Cantilever with Torsion
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.211 tons |
| Dimensions (Metric) | 5.000 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 16.4 x 0 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
