RF‑/FOUNDATION Pro allows you to check the allowable eccentricity of the soil pressure resultants. According to DIN EN 1997‑1/NA, this design is to be carried out with the characteristic or representative loads.

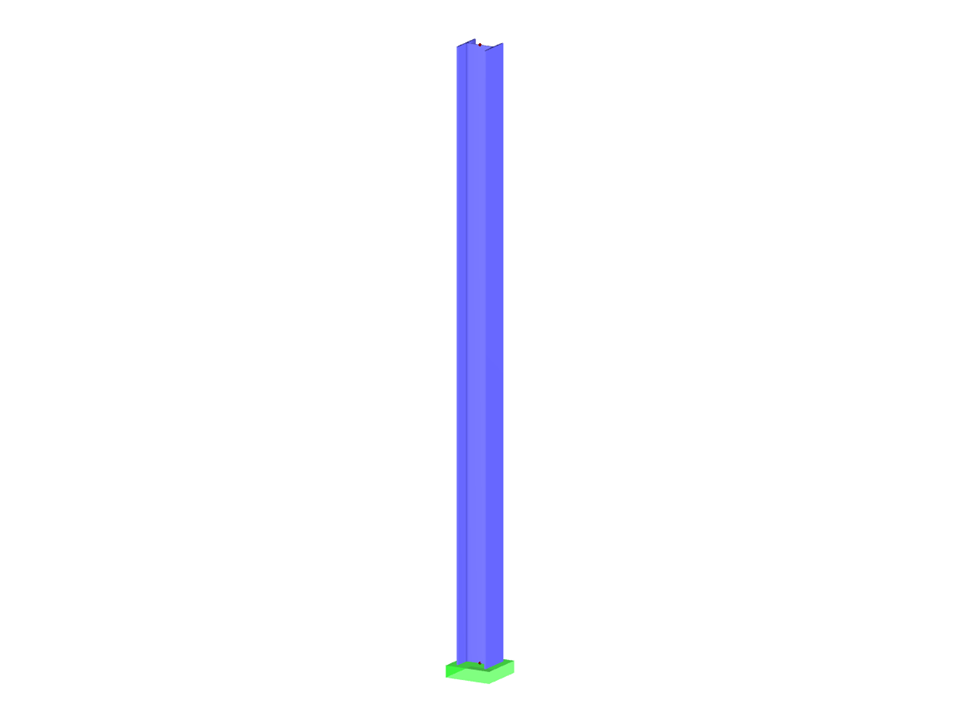

Steel Cantilever Beam with Connection to Foundation Plate
Number of Nodes | 2 |
Number of Lines | 1 |
Number of Members | 1 |
Number of Surfaces | 0 |
Number of Solids | 0 |
Number of Load Cases | 4 |
Number of Load Combinations | 34 |
Number of Result Combinations | 4 |
Total Weight | 0.202 tons |
Dimensions (Metric) | 0.000 x 4.000 x 0.000 m |
Dimensions (Imperial) | 0 x 13.12 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
![Steel Cantilever Beam with Connection to Foundation Plate](/en/webimage/014938/2952462/RFEM-File.png?mw=512&hash=0ff24edc21e83e16e11258e492f125be8b8ee550)
![KB 001883 | Plate Girder Design According to AISC 360-22 in RFEM 6](/en/webimage/051561/3980997/im1.png?mw=512&hash=b8237709c4f30213fac51d86d32a42bddde72f03)
![Steel Connection Rigidity and Its Influence on Structural Design](/en/webimage/051432/3972404/Rigidity-caseA.png?mw=512&hash=3be64e68ab2956fd2b92f0afa1559b3a8c72b468)
![KB 001875 | AISC 341-22 Moment Frame Member Design in RFEM 6](/en/webimage/047794/3736755/im01.jpg?mw=512&hash=33697d419a0e8a96b738e8e2e97fae057743a108)
![General Information](/en/webimage/007078/1590973/000142-en-png-png.png?mw=512&hash=164bb83a971fa53783a6c369f2324783984ba81c)
- Available types of foundation:Pure foundation plate (optionally without reinforcement)
- Bucket foundation with smooth bucket sides
- Bucket foundation with rough bucket sides
- Block Foundation with Smooth Bucket Sides
- Block foundation with rough bucket sides
- Design according to EN 1992-1-1 and EN 1997-1
- The following National Annexes of Eurocode 2 and Eurocode 7 are available:
-
DIN EN 1992-1-1/NA/A1:2015-12 | DIN EN 1997-1/NA:2010-12
-
ÖNORM B 1992-1-1:2018-01 | ÖNORM B 1997-1:2007-11
-
DK EN 1992-1-1/NA:2013 | DK EN 1997-1/NA:2007
-
BDS EN 1992-1-1:2005/NA:2011 | BDS EN 1997-1:2005/NA:2012
-
SFS EN 1992-1-1/NA:2007-10 | SFS EN 1997-1/NA:2004-01
-
NF EN 1992-1-1/NA:2016-03 | NF EN 1997-1/NA:2006-09
-
UNI EN 1992-1-1/NA:2007-07 | DIN EN 1997-1/NA:2005-01
-
NEN EN 1992-1-1 C2:2011/NB:2016-11 | NEN EN 1997-1+C1:2012/NB:2012
-
PN EN 1992-1-1/NA:2010 | PN EN 1997-1/NA:2005-05
-
STN EN 1992-1-1/NA:2008-06 | STN EN 1997-1/NA:2005-10
-
SIST EN 1992-1-1:2005/A101:2006 | SIST EN 1997-1/NA:2006-03
-
UNE EN 1992-1-1/NA:2013 | UNE EN 1997-1:2010
-
EN 1992-1-1/NA:2008 | Svensk EN 1997-1:2005/AC:2009
-
CSN EN 1992-1-1/NA:2016-05 | CSN EN 1997-1/NA:2014-06
-
BS EN 1992-1-1:2004/NA:2005 | BS EN 1997-1:2004
-
TKP EN 1992-1-1:2009 | TKP EN 1997-1:2009
-
CYS EN 1992-1-1:2004/NA:2009 | CYS EN 1997‑1/NA:2004
-
In addition to the National Annexes (NA) listed above, you can also define a specific NA, applying user‑defined limit values and parameters.
- Automatic calculation of governing loading from load cases
- Specification of additional support forces
- Determination of the reinforcement proposal for the bottom and top plate reinforcement considering the most favorable combination of mat and rebars
- Individual adjustment of reinforcement proposal
- Results of foundation reinforcement in detailed reinforcement drawings
- Results displayed in tables and graphics
- Visualization of foundation, columns, and reinforcement in 3D rendering
![Governing Design Criteria](/en/webimage/007080/1591014/000144-en-png.png?mw=512&hash=ae6388ccccdc4fa6e4a6d8e0fd63b573621182d5)
It is possible to perform the following designs:
- Equilibrium limit state design
- Uplift limit state design
- Ground failure (soil contact pressure) design
- Strong eccentric loads design
- Design of foundation torsion and limitation of gaping joint
- Sliding design
- Settlement calculation
- Bending failure design of the plate and bucket
- Punching shear design
Foundation and bucket dimensions can be user-defined or determined by the module. You can edit the determined reinforcement manually. In this case, the designs are updated automatically.
![Add-on "Steel Joints for RFEM 6" | Component Library](/en/webimage/043097/3898884/steel_joints_components.png?mw=512&hash=e4f835906155863fc7019d5043b22e553dc766f9)
- Numerous component types, such as base and end plates, web angles, fin plates, gusset plates, stiffeners, tapers, or ribs for easy input of typical connection situations
- Universally applicable basic components (such as plates, welds, bolts, auxiliary planes) for modeling complex connection situations
- Graphical display of the connection geometry with dynamic updating during the input
- Wide range of cross-section shapes: I-sections, U-sections, angles, T-sections, hollow sections, built-up cross-sections and thin-walled sections
- Library in the Dlubal Center with a large number of program-side template connections, including user-defined templates
- Automatic adaptation of the connection geometry based on the relative arrangement of the components to each other – even in case of subsequent editing of the structural components
![Feature 002828 | Fire Design of Slabs and Walls According to Simplified Table Method](/en/webimage/050837/3925042/50837.png?mw=512&hash=b06639a36ab8b62ab6d08e08552a5ec274469a37)
In the Concrete Design add-on for RFEM 6, you can perform the fire design of reinforced concrete slabs and walls according to the simplified table method (EN 1992‑1‑2, Section 5.4.2 and Tables 5.8 and 5.9).
