Editing Multi-Prints

I would like to edit a multi-print subsequently; how does it work?

Answer:

Already created multi-prints can be adjusted with just a few clicks. To do this, follow the steps below:

  1. Open the relevant printout report (1), for example, by right-clicking the Data navigator.
  2. A new dialog appears; click the Edit Multi-Print button in the menu bar (2), and select the multiple print you want to change (3).
  3. Check the synchronization of images in the Image Actions tab and adjust it, if necessary (4).

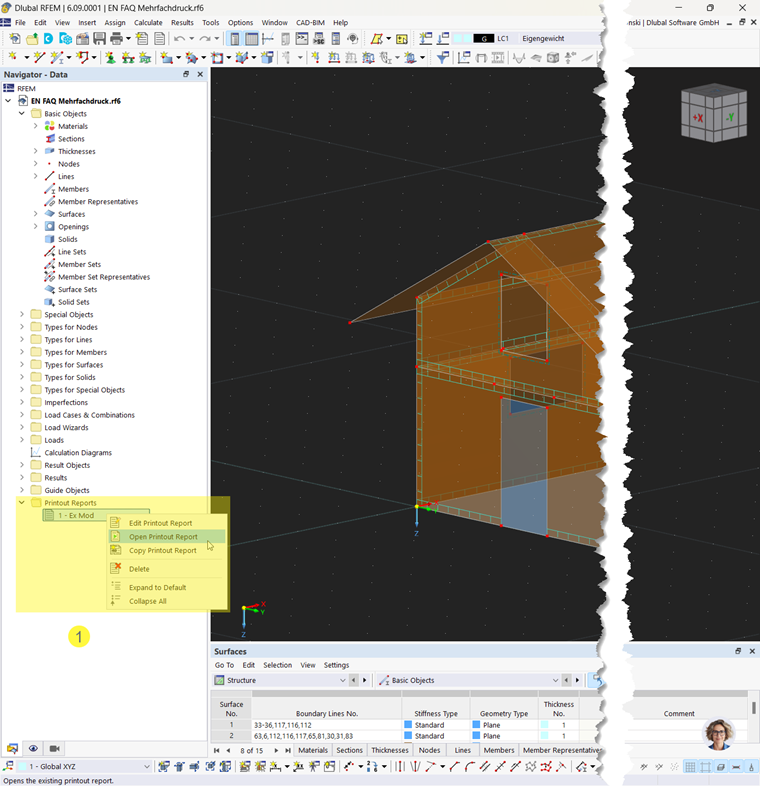

Editing Multi-Print: Opening Printout Report in Data Navigator
Opening Printout Report by Right-Clicking in Data Navigator

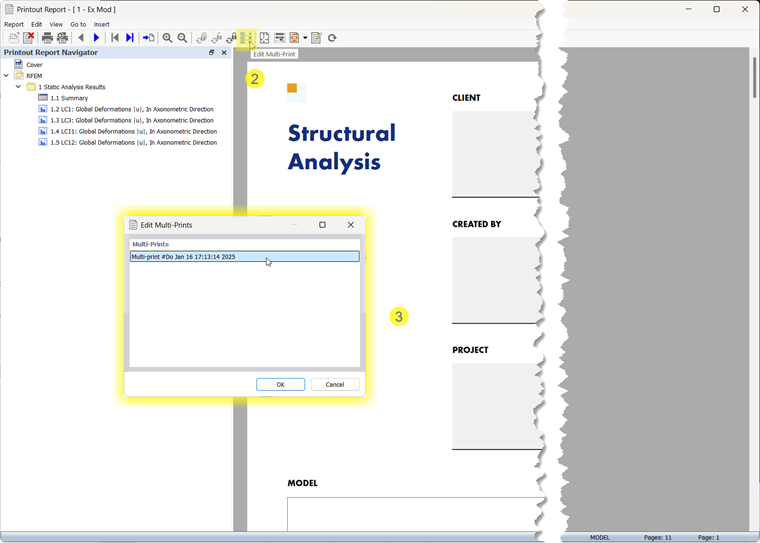

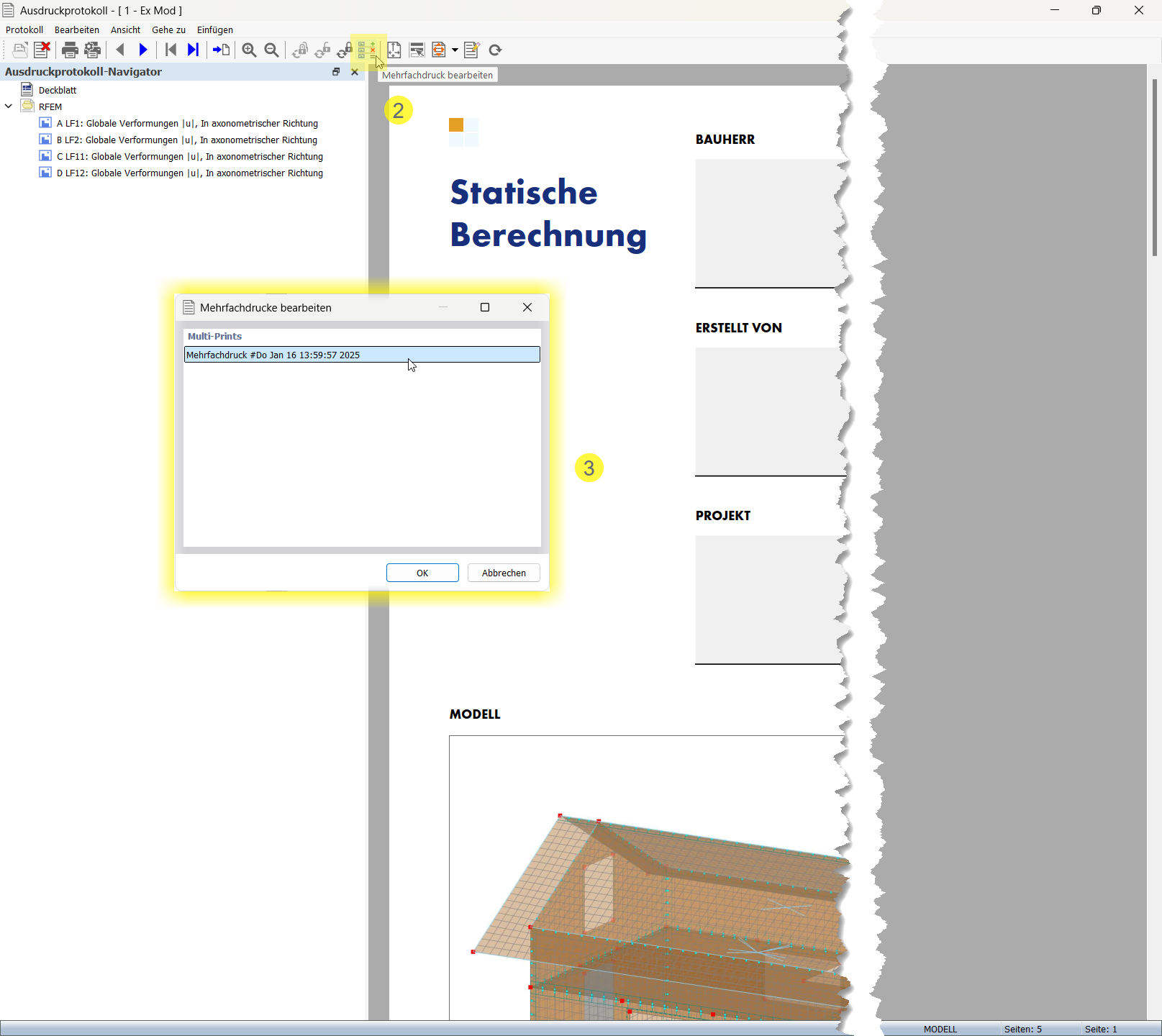

Editing Multi-Prints: Selecting Relevant Multi-Print
Opening Multi-Print for Editing in New Window

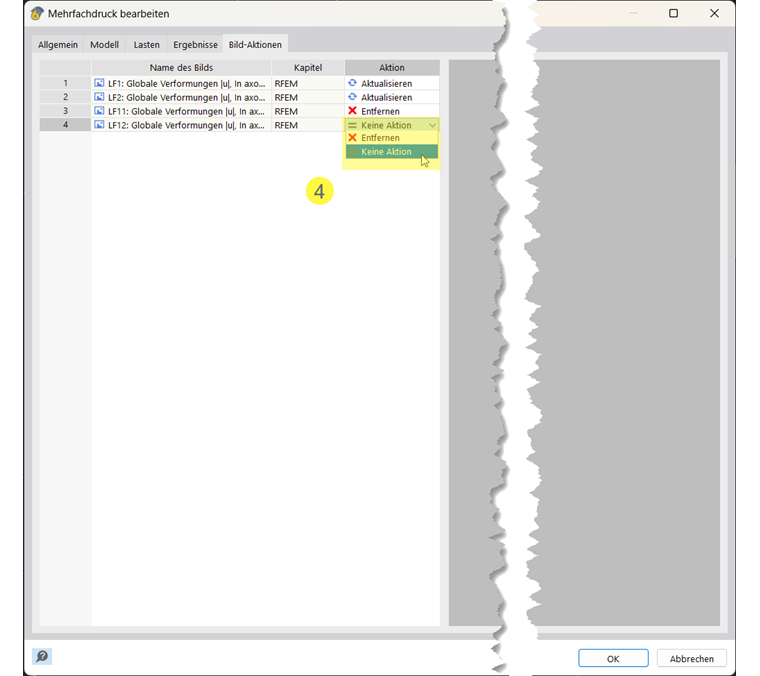

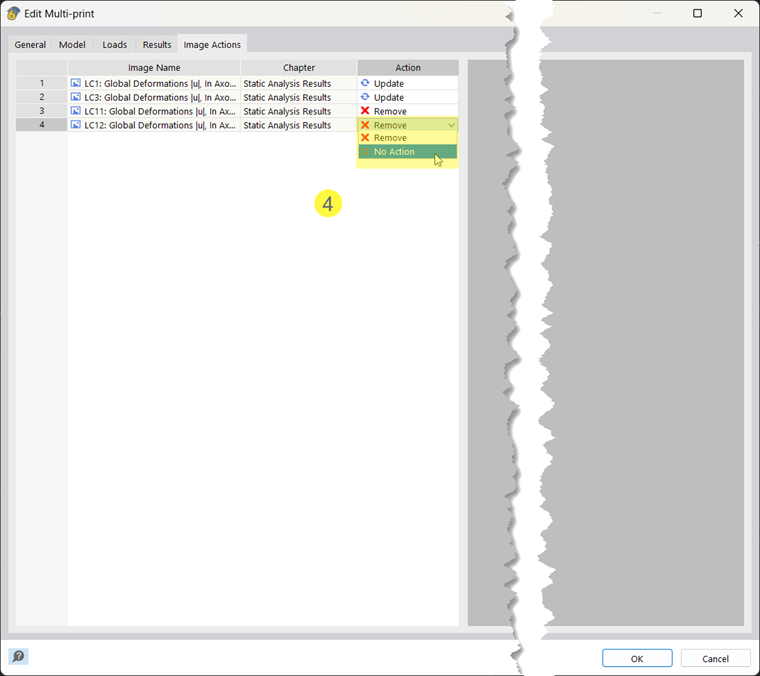

Editing Multi-Prints: Checking Image Synchronization
Checking Image Synchronization for Multi-Print
Info

You can freeze the current image state of by setting the synchronization to "No Action".
