Barrel vault (semi-cylindrical) above walls. Snow loads.
Geometry via height / radius

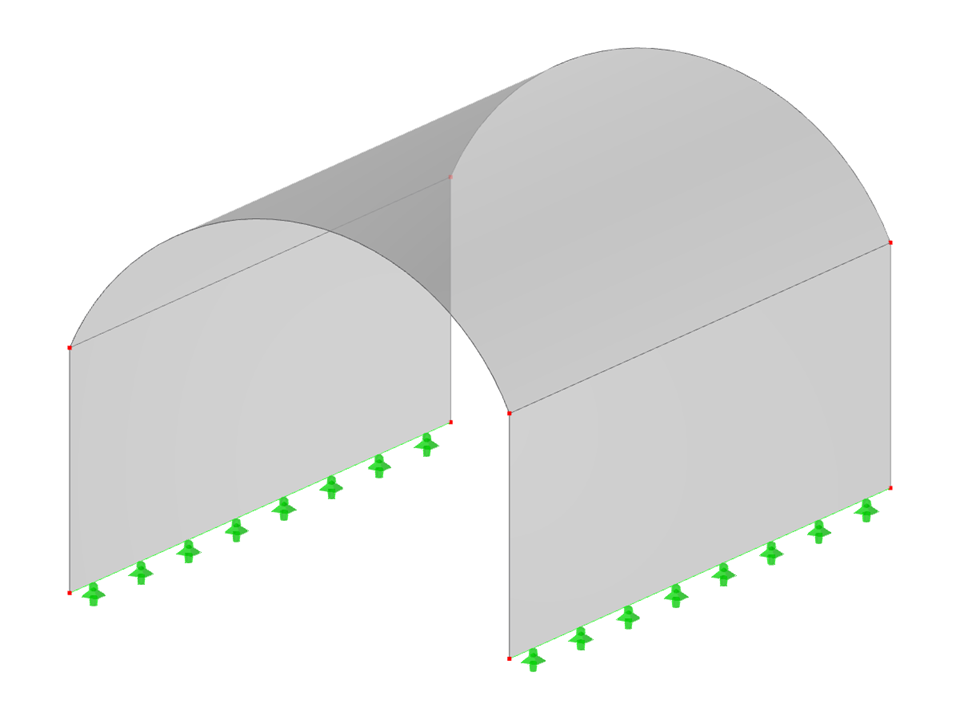

SHC020-snow | Barrel Vault (Semi-Cylindrical) Above Walls
| Block parameters editable dynamically | |
| Number of Nodes | 8 |
| Number of Lines | 10 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 13.568 tons |
| Dimensions (Metric) | 4,000 x 3,300 x 6,000 m |
| Dimensions (Imperial) | 13.12 x 10.83 x 19.69 feet |
