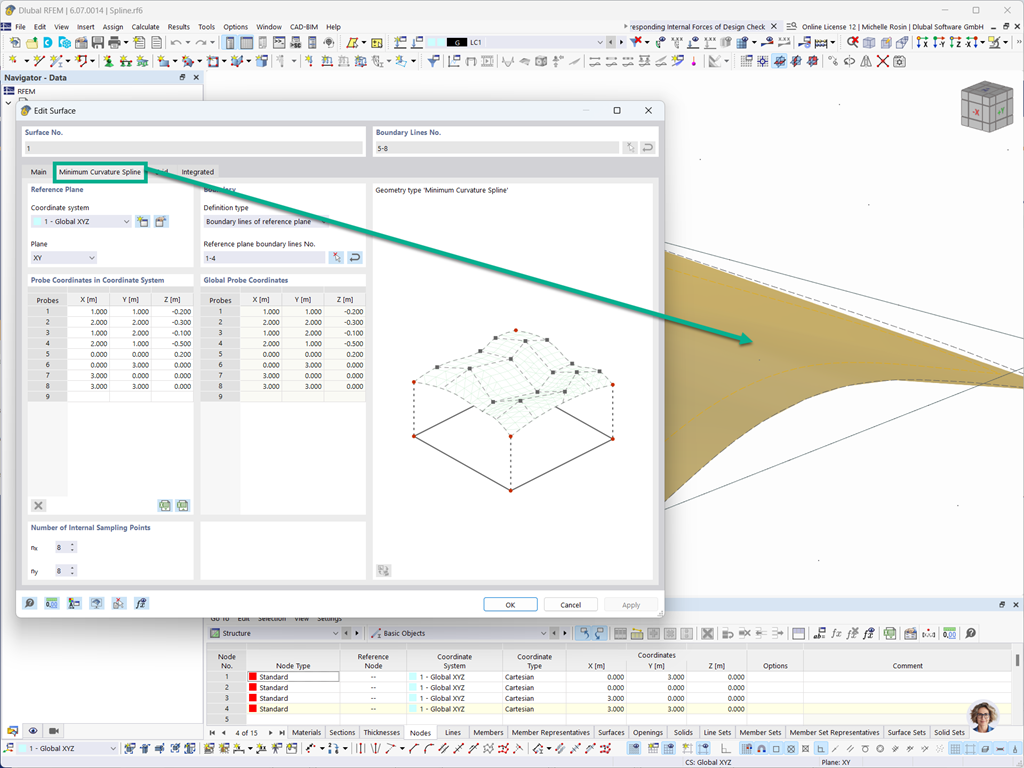

You can use the "spline with minimum curvature" surface geometry type to generate curved surfaces on the basis of the control nodes in the middle of the surface.
This can be used to model terrain surfaces, for example.
