In RFEM and RSTAB, it is possible to analyze members with a variable cross-section, which can also consist of freely defined SHAPE‑THIN cross-sections. The cross-section properties are interpolated in order to determine the internal forces and deformations.
Model Used in

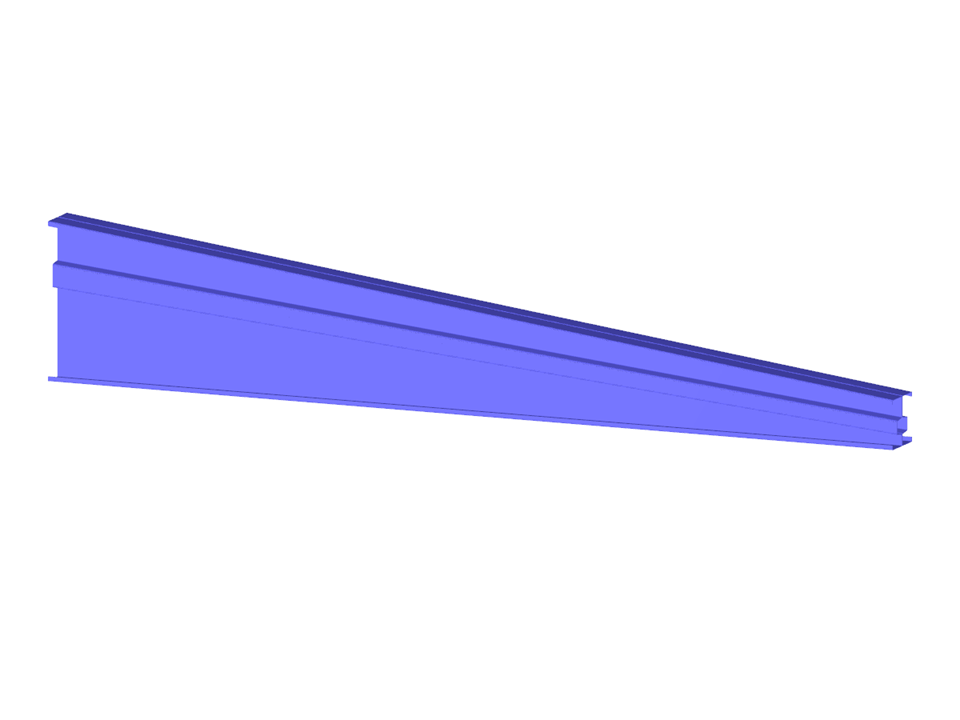

Member with Variable SHAPE-THIN Cross-Section
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.048 tons |
| Dimensions (Metric) | 3.000 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 9.84 x 0 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
