This model presents a modern steel building that focuses on the use of robust steel sections and precise connection techniques. It presents efficient use of materials and innovative construction methods. The design emphasizes the load-bearing capacity and durability of steel as a main building material. Ideal for illustrating modern concepts in building construction.
Submodels
Model Used in
- Nonlinear Time History Analysis – Machine-Induced Vibrations
- Eurocode 3 | Steel structures according to DIN EN 1993-1-1
- Eurocode 3 | Steel structures according to DIN EN 1993-1-1
- Eurocode 3 | Steel Structures According to DIN EN 1993-1-1
- Eurocode 3 | Steel Structures According to DIN EN 1993-1-1
- Eurocode 3 | Steel Structures According to DIN EN 1993-1-1
- Eurocode 3 | Steel Structures According to DIN EN 1993-1-1
- Eurocode 3 | Steel Structures According to DIN EN 1993-1-1
- Top 5 Reasons for Dlubal Software
- Merry Christmas 2020

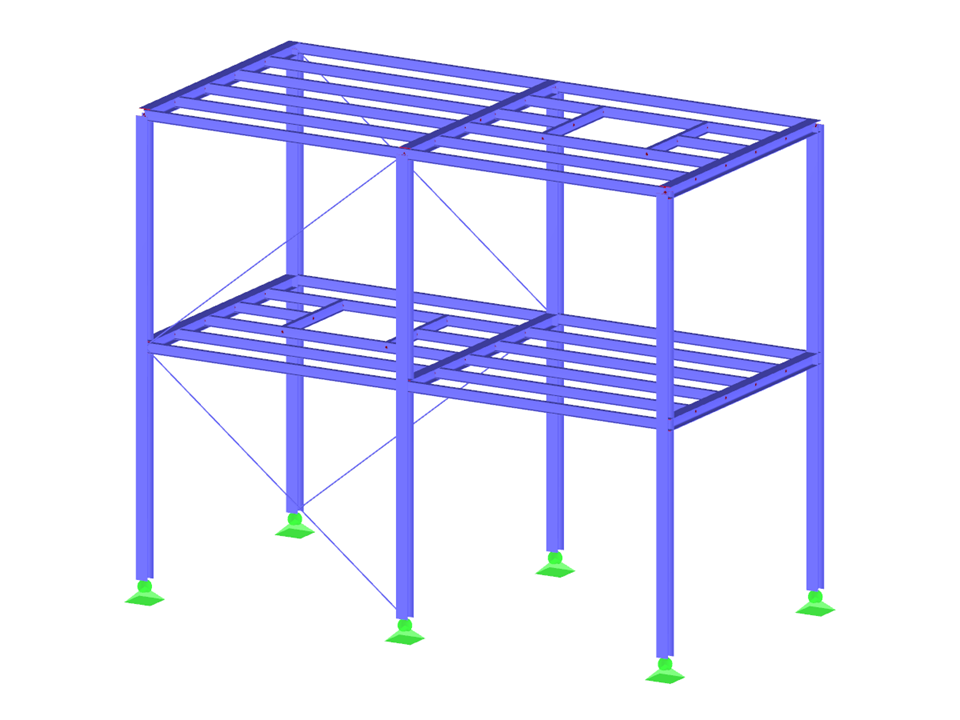

Steel Building Structure
| Number of Nodes | 55 |
| Number of Members | 89 |
| Number of Load Cases | 2 |
| Total Weight | 6,362 t |
| Dimensions (Metric) | 10.500 x 5.500 x 8.250 m |
| Dimensions (Imperial) | 34.45 x 18.04 x 27.07 feet |
| Program Version | 8.13.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
