The architectural highlight of the bus station in Halle an der Saale is the stylishly designed roof structures over bus platforms. The light strips integrated into the roof edges make them an real eye-catcher, especially at night.
The canopies consist of steel structures with arched roofs. PVC-PES membranes and mesh fabric provide protection against the elements, such as rain and snow.
When redesigning the bus station for a total of 4 million euros, the focus was also on accessibility.
The Zapf & Co. from Strausberg, a customer of Dlubal Software, was responsible for the structural analysis, the detailed design, and the work planning of the membranes. RSTAB was used for the membrane calculation.
Investor
City of Halle (Saale)
www.halle.de
Architectural Design
BLP
Structural Design
zapf & co. - structural engineering GmbH, Strausberg, Germany
www.zapf-co.de
Construction
Temme//Obermeier GmbH
www.to-experts.com

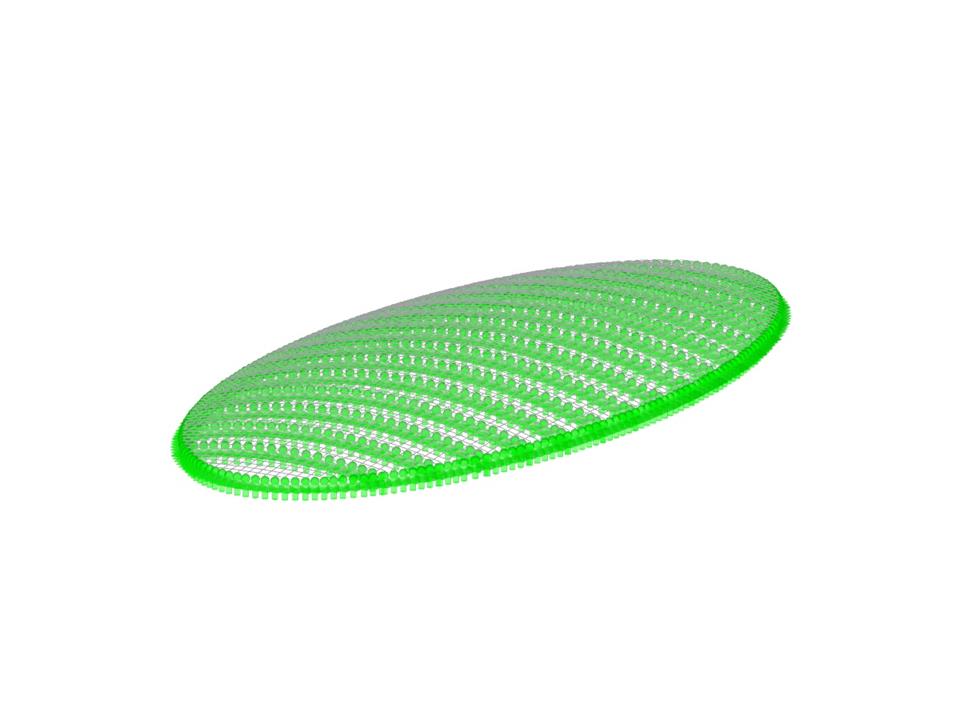

3D model (© Guido Kranz)
The canopies consist of steel structures with arched roofs. PVC-PES membranes and mesh fabric provide protection against the elements, such as rain and snow.
When redesigning the bus station for a total of 4 million euros, the focus was also on accessibility.
The Zapf & Co. from Strausberg, a customer of Dlubal Software, was responsible for the structural analysis, the detailed design, and the work planning of the membranes. RSTAB was used for the membrane calculation.
Investor
City of Halle (Saale)
www.halle.de
Architectural Design
BLP
Structural Design
zapf & co. - structural engineering GmbH, Strausberg, Germany
www.zapf-co.de
Construction
Temme//Obermeier GmbH
www.to-experts.com

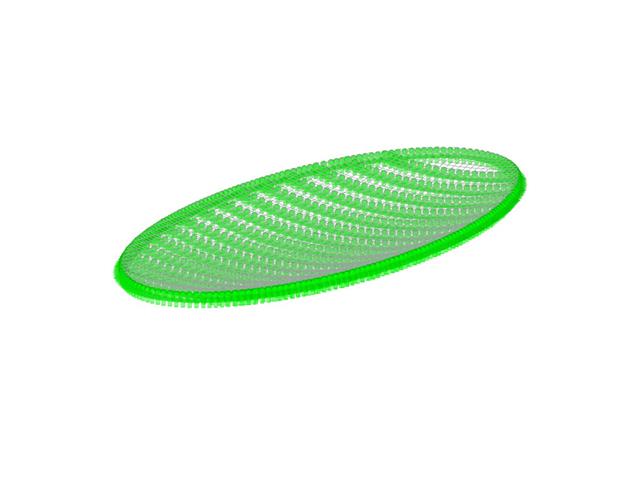

3D model (© Guido Kranz)
Submodels
Roofing of Bus Platforms
No Download Possible
Customer Project / View Only
Number of Nodes | 5235 |
Number of Members | 7963 |
Number of Load Cases | 19 |
Total Weight | 0.000 tons |
Dimensions (Metric) | 12.912 x 28.411 x 1.303 m |
Dimensions (Imperial) | 42.36 x 93.21 x 4.27 feet |
Program Version | 8.20.02 |
