Defining Nodal Supports

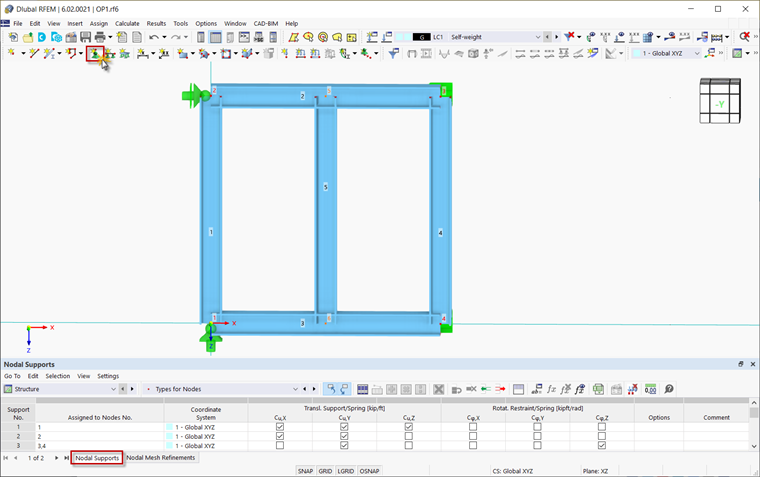

To define nodal supports, use the Assign Nodal Support button in the toolbar. Then, assign the nodal supports to Nodes 1, 2, 3, and 4. The details of the support definition can be found in the "Nodal Support" table shown in the image Defining Nodal Supports.

Defining Nodal Support
Defining Nodal Support
