If you set the orthotropy direction to 90 degrees - that is, perpendicular to the beams - the moments will increase. If the sheet metal arches are perpendicular to the beams, the stiffness in the second direction is very small, so the load is transferred first between the IPE 120 beams.
Orthotropy Direction of Plate

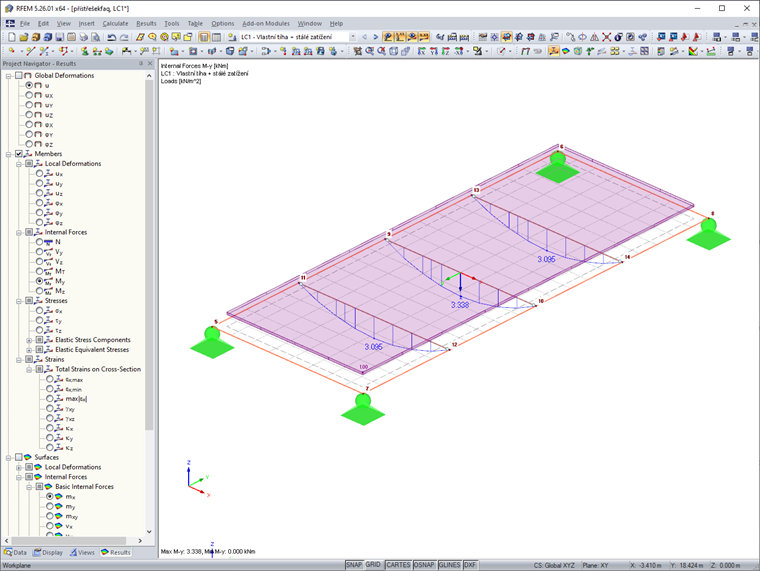

I have a trapezoidal roof structure supported by beams. However, the moments on the beams are smaller than they should be. What could be the reason for this?
Answer:
The trapezoidal sheet is modeled as an orthotropic surface. In the default setting, the arches of the trapezoidal sheet are in the x directions, which is the same direction of the IPE 120 beams.Author
Ing. Martinec takes care of customer service and student licenses in the Czech office.
