Question

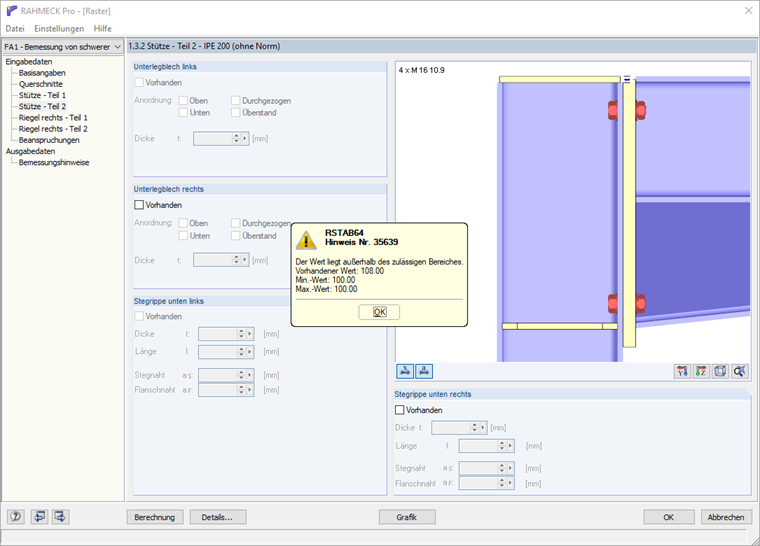

When calculating a connection using the FRAME‑JOINT Pro add-on module, a message appears saying that the value is out of the valid range (existing value: 108, minimum value 100, maximum value 100). What does this message mean?
Answer:

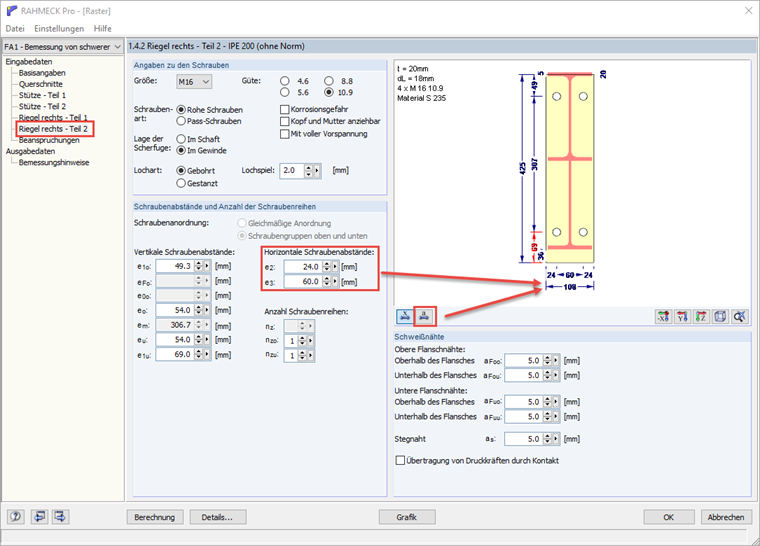

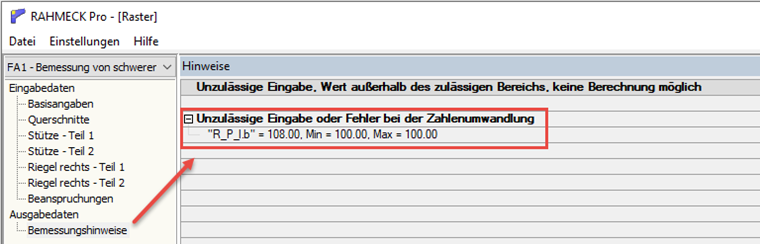

The easiest way is to change to the design notes after the calculation or after the note appears in the design notes (see Image 02). In that case, this shows that the width of the end plate is not correct. From input window 1.4.2, it is possible to quickly recognize in the graphic that the value is not within the valid range.This can be corrected very quickly by adjusting the horizontal bolt spacings (see Image 03).
