Download the model of a timber frame studio here, and open it with the structural FEA software RFEM 6.
Ce modèle est utilisé dans la matinale «Création de murs ossature bois dans RFEM 6» du 4 juillet 2024.

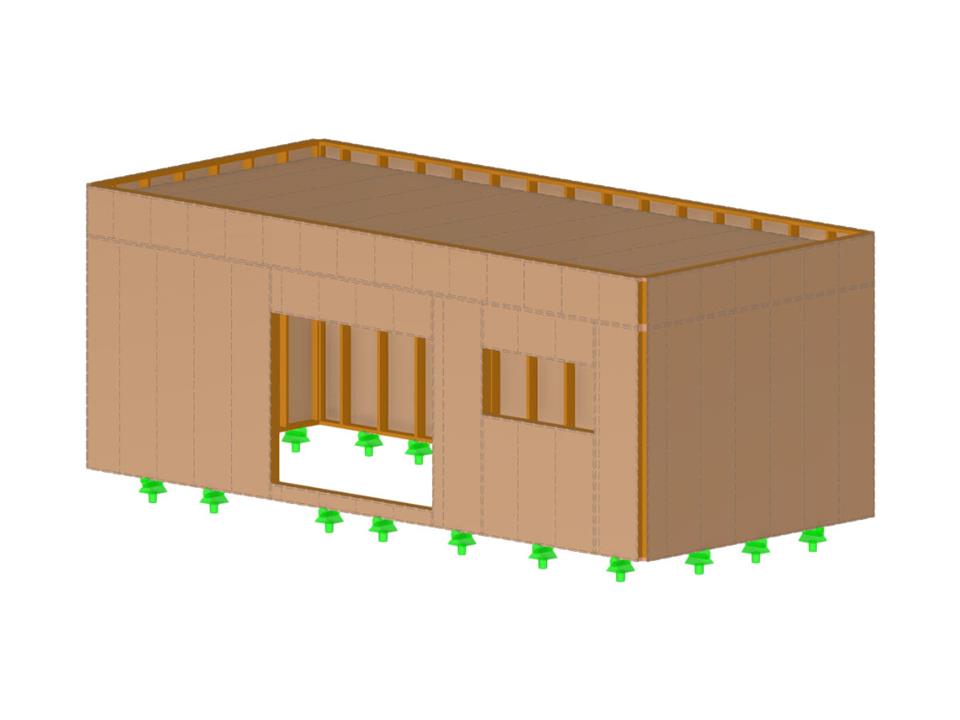

Studio en ossature bois
Number of Nodes | 876 |
Number of Lines | 500 |
Number of Members | 216 |
Number of Surfaces | 27 |
Number of Solids | 0 |
Number of Load Cases | 11 |
Number of Load Combinations | 77 |
Number of Result Combinations | 0 |
Total Weight | 3.817 tons |
Dimensions (Metric) | 9,010 x 3,400 x 4,110 m |
Dimensions (Imperial) | 29.56 x 11.15 x 13.48 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
