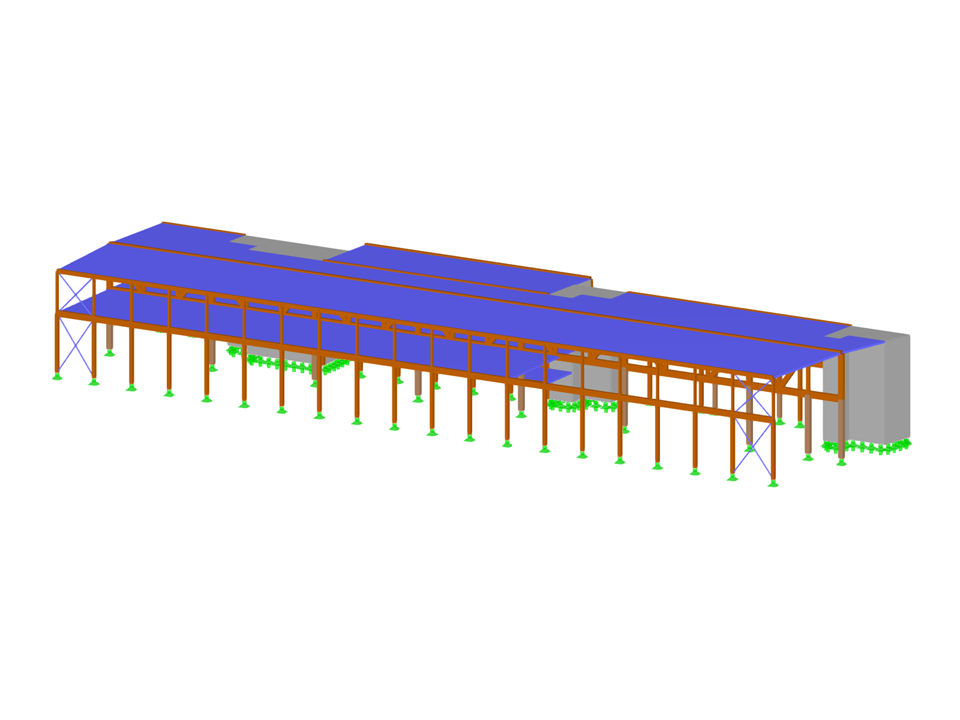

Edelweiss Industrial Park Workshop in Münchwilen, Switzerland
Structural Engineering (Timber) and Fire Protection
Josef Kolb AG
Edelweiss Industrial Park Workshop
No Download Possible
Customer Project / View Only
| Number of Nodes | 265 |
| Number of Lines | 434 |
| Number of Members | 313 |
| Number of Surfaces | 36 |
| Number of Solids | 0 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 5 |
| Total Weight | 119.504 tons |
| Dimensions (Metric) | 98,663 x 12,400 x 27,650 m |
| Dimensions (Imperial) | 323.7 x 40.68 x 90.72 feet |
