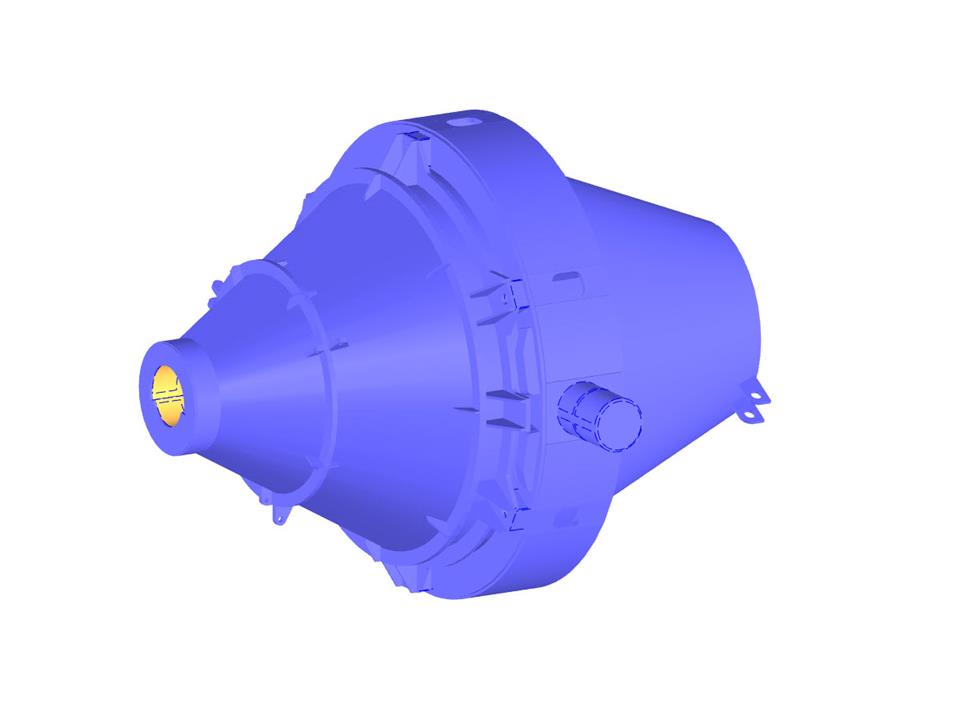

3D Model of Retort in RFEM
No Download Possible
Customer Project / for View Only
Number of Nodes | 2342 |
Number of Lines | 2292 |
Number of Members | 466 |
Number of Surfaces | 575 |
Number of Solids | 14 |
Number of Load Cases | 1 |
Number of Load Combinations | 1 |
Total Weight | 67.473 tons |
Dimensions | 23.96 x 19.54 x 19.6 feet |
Program Version | 5.29.01 |
