Download the model of a five-story concrete building here, and open it with the finite element software RFEM 6.
- This model is used in the webinar "Seismic Analysis According to Eurocode 8 with RFEM 6 and RSTAB 9" on February 9, 2022.
Model Used in

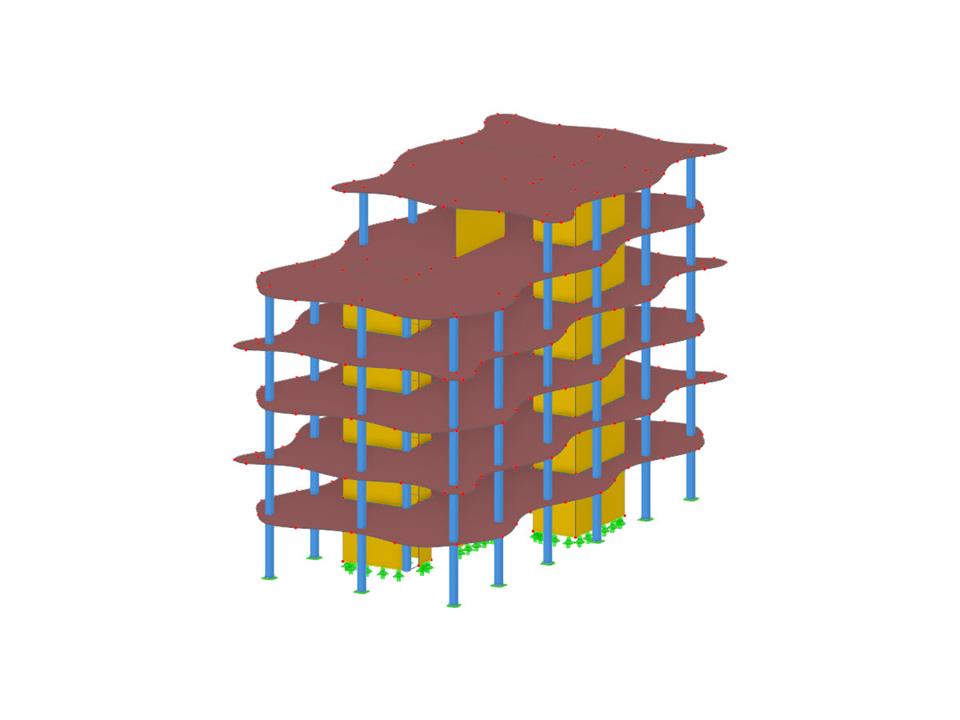

Five-Story Concrete Building
| Number of Nodes | 391 |
| Number of Lines | 275 |
| Number of Members | 78 |
| Number of Surfaces | 62 |
| Number of Solids | 0 |
| Number of Load Cases | 7 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 1 |
| Total Weight | 2520.101 tons |
| Dimensions (Metric) | 18,128 x 22,000 x 35,693 m |
| Dimensions (Imperial) | 59.48 x 72.18 x 117.1 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
