The architectural project was designed by the Cologne architects MSM Meyer Schmitz-Morkramer. OSD GmbH & Co. KG from Frankfurt, a customer of Dlubal Software, was responsible, among others, for the structural design.
Structural Planning, Facade Design, and Building Physics
Office for structural design
OSD GmbH & Co. KG
www.osd.com

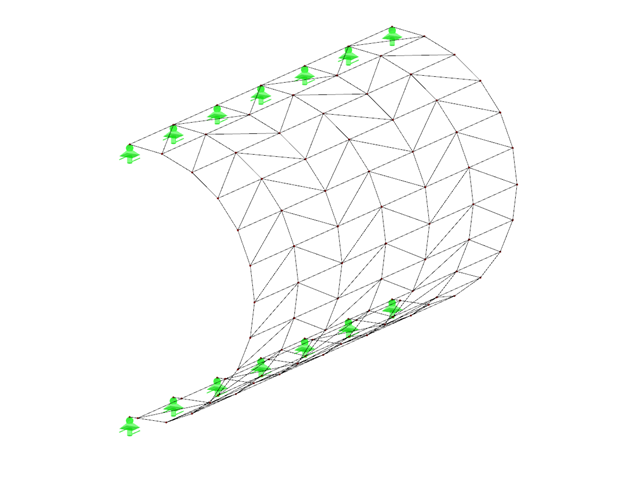

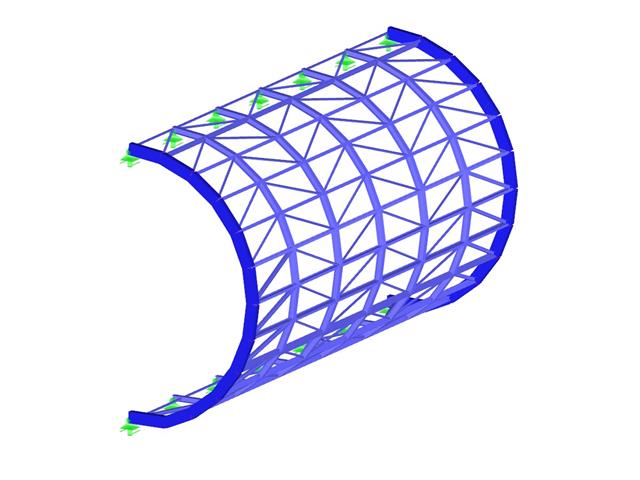

Models of rounding and staircase with results in RFEM (© osd GmbH & Co. KG)
Structural Planning, Facade Design, and Building Physics
Office for structural design
OSD GmbH & Co. KG
www.osd.com
Models of rounding and staircase with results in RFEM (© osd GmbH & Co. KG)
Submodels
Steel Staircase
No Download Possible
Customer Project / View Only
| Number of Nodes | 341 |
| Number of Lines | 463 |
| Number of Surfaces | 212 |
| Number of Load Cases | 8 |
| Number of Result Combinations | 4 |
| Total Weight | 5.319 tons |
| Dimensions (Metric) | 4.151 x 8.231 x 5.744 m |
| Dimensions (Imperial) | 13.62 x 27 x 18.85 feet |
| Program Version | 5.04.00 |
