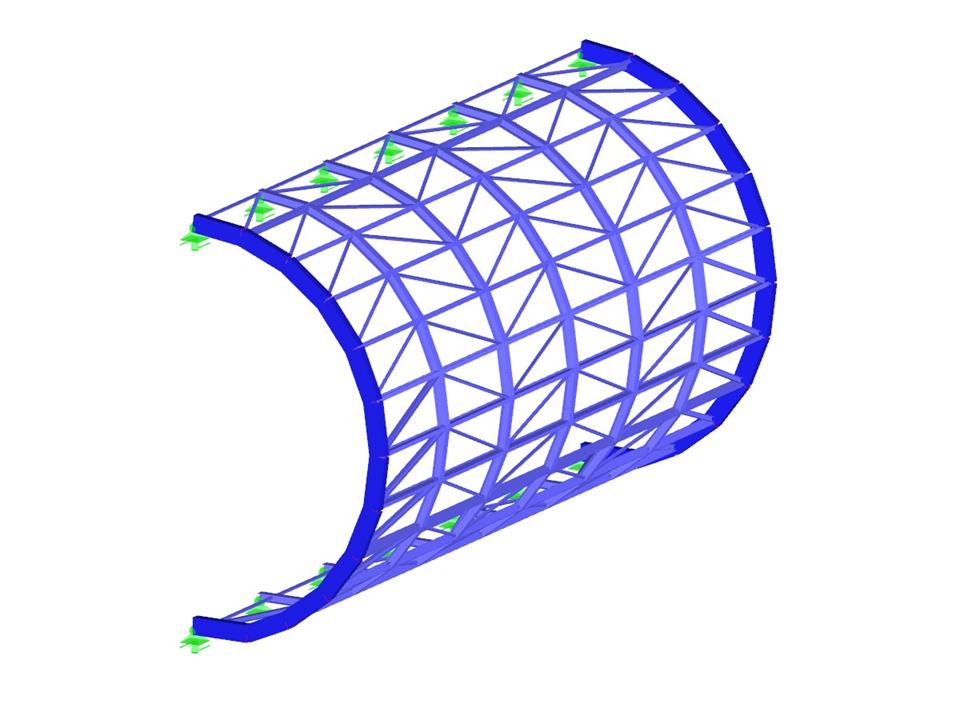

The 1238 model presents an innovative design developed by msm meyer schmitz-morkramer. Dlubal customer osd from Frankfurt am Main was responsible for planning the rounded steel structure. The curved and staircase models were implemented with results in RFEM (© osd GmbH & Co. KG). The concept is complemented by services in façade planning and office for structural design. Further information can be found at osd GmbH & Co. KG.
BVB-Roundness Concept
No Download Possible
Customer Project / View Only
| Number of Nodes | 98 |
| Number of Lines | 241 |
| Number of Members | 241 |
| Number of Load Cases | 7 |
| Number of Load Combinations | 7 |
| Number of Result Combinations | 1 |
| Total Weight | 15,396 t |
| Dimensions (Metric) | 4.825 x 17.313 x 9.450 m |
| Dimensions (Imperial) | 15.83 x 56.8 x 31 feet |
| Program Version | 5.04.00 |
