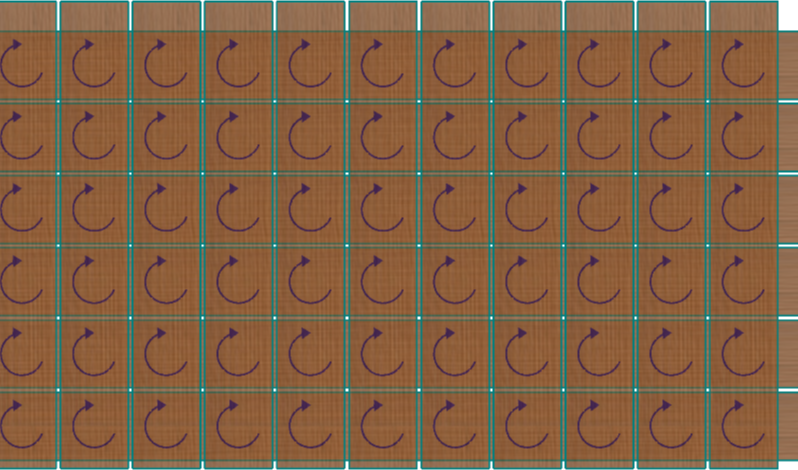

In the RF-LAMINATE add-on module for RFEM, the design of torsional shear stresses in the superposition of net and gross cross-section values is possible. The design is performed separately in the x- and y-directions. The loads on the intersection points of cross-laminated timber panels are checked.
![Influence of Duration of Action on Design Value of Strength](/en/webimage/009009/2416281/01-en-png.png?mw=512&hash=e5b08a40fd9a5a16825be6182b3138f78627561e)
![Local Effects with Regard to Load Introduction](/en/webimage/009651/2419861/01-en-png-5-png.png?mw=512&hash=57fe69a0196bfb7d797aa679c1b239891bfc6570)
![Cross-Laminated Timber Wall with Openings Subjected to Wall Stress](/en/webimage/009665/467451/01-de-png.png?mw=512&hash=2551750327252c0e49d549ec0d9fb2579bfaa885)
![FE Model of Steel Connection](/en/webimage/052000/4028239/1.png?mw=512&hash=9d7f6c198b6d4ae6ee8f2fa8bca75f85579e14c9)
![Torsional stress at the intersection points of a cross -laminated timber plate in RFEM](/en/webimage/006828/497052/RF-LAMINATE.png?mw=512&hash=f7633cd46a79186ac55ba5a5f450c2a96ad24a85)
In the RF-LAMINATE add-on module for RFEM, the design of torsional shear stresses in the superposition of net and gross cross-section values is possible. The design is performed separately in the x- and y-directions. The loads on the intersection points of cross-laminated timber panels are checked.
![Feature 002824 | OSB Material for USA and Canada](/en/webimage/050460/3955503/2024-06-28_10-42-39.png?mw=512&hash=5ec86ff7955d8c9a50e53301df3f21fceda009a5)
In RFEM, the oriented strand board (OSB) material is available for the USA and Canada. The material parameters are taken from the "Panel Design Specification manual".
![Feature 002792 | Timber Panel Element](/en/webimage/048109/3767848/2024-03-14_13-56-20.png?mw=512&hash=c2c60498cb42f6ae62fb1ccfea4928bacda0d865)
Using the "Beam Panel" thickness type, you can model timber panel elements in 3D space. Simply specify the surface geometry and the timber panel elements are automatically generated using an internal member-surface construct, including the element connection stiffness. The Beam Panel thickness type is defined using the Multilayer Surfaces add-on.
A "beam panel" provides you with the following advantages:
- Single-sided or double-sided sheathing
- Automatic calculation of a semi-rigid coupling between studs and sheathing
- Nailed sheathing connection
- Stapled sheathing connection
- User-defined sheathing connection
- Representation as a complete geometric 3D object (frame, studs, surface, etc.), including eccentricity and automatically calculated stiffness between elements
- Consider openings via surface cells
- Design of the individual structural elements utilizing the Timber Design add-on (full shear wall design planned for a future release)
- Other material options available (e.g., particle board, gypsum, or fiberboard sheathing with cold-formed steel sections)
![Feature 002585 | Fire Resistance Design of Surfaces for EN 1995 and SIA 265](/en/webimage/047506/3771829/2024-03-15_11-08-39.png?mw=512&hash=9825c52bdc32fc7283ab1907a9b8435abfd7054b)
You have the option to perform the fire resistance design of surfaces using the reduced cross-section method. The reduction is applied over the surface thickness. It is possible to perform the design checks for all timber materials allowed for the design.
For cross-laminated timber, depending on the type of adhesive, you can select whether it is possible for individual carbonized layer parts to fall off, and whether you can expect increased charring in certain layer areas.
