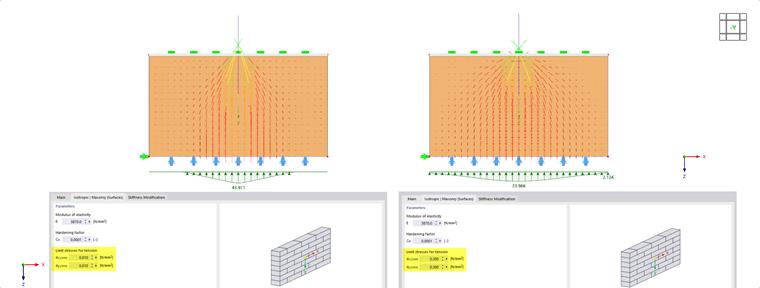

Yes, you can control the load distribution by setting the limit stresses for tension as very high or small.
Load Extension Isotropic Masonry | Plastic
Is it possible to influence the transverse distribution of a load in the case of the Isotropic | Masonry | Plastic material model?
Mr. Lex is responsible for developing products for glass structures and for quality assurance of the RFEM program. He also provides technical support for our customers.
