Answer:

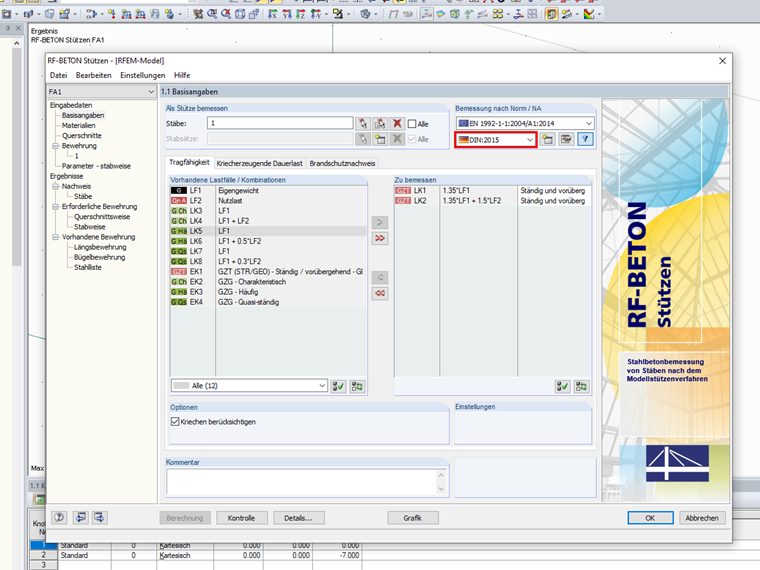

Yes, if you select the National Annex "DIN", the "extended zone method" according to DIN EN 1992‑1‑2, Annex B.2 is used for the fire resistance design.
Question
Is the "extended zone method" used for the fire resistance design in RF‑CONCRETE Columns?
