Result Evaluation and Printout Report
Total items: 7
Colored Representation of Internal Forces and Moments
The result tables show in color whether the internal forces are positive or negative, as well as showing the relation to the extreme values. The result tables of the design modules use color scales to represent the respective design ratios. This way, the governing locations are apparent immediately.

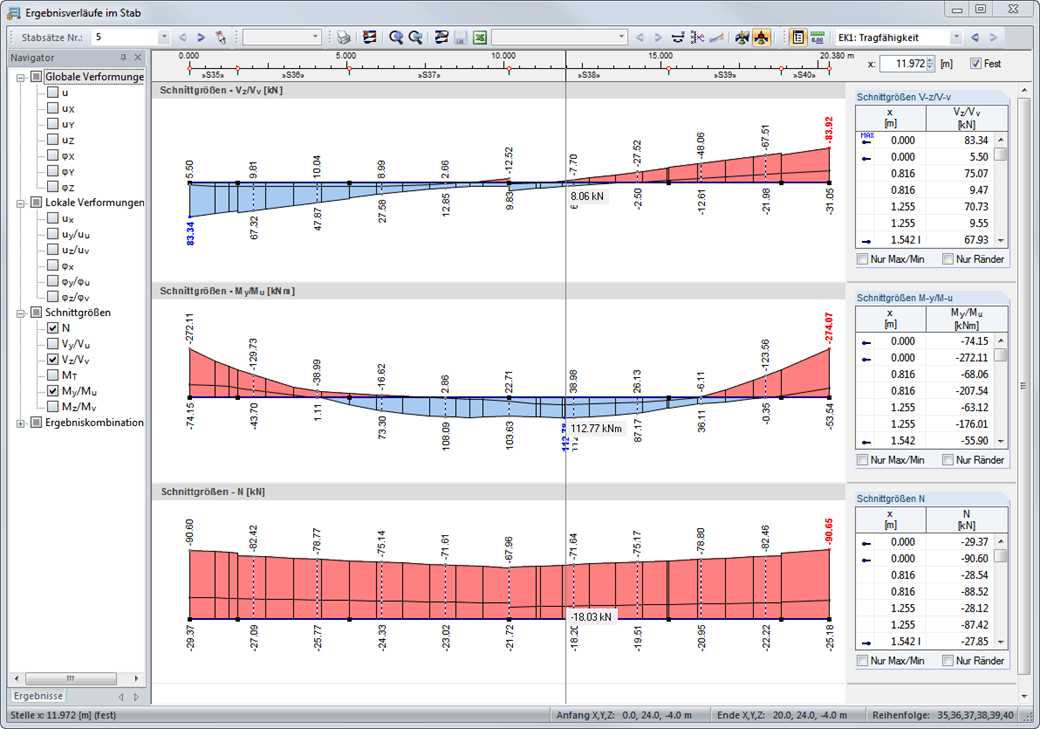

Result Diagrams
The result diagrams of members and sets of members are freely configurable. You can define smooth ranges with average values or, if necessary, display and hide the result distributions. This option ensures targeted evaluation of the results. All diagrams can be added in the printout report.

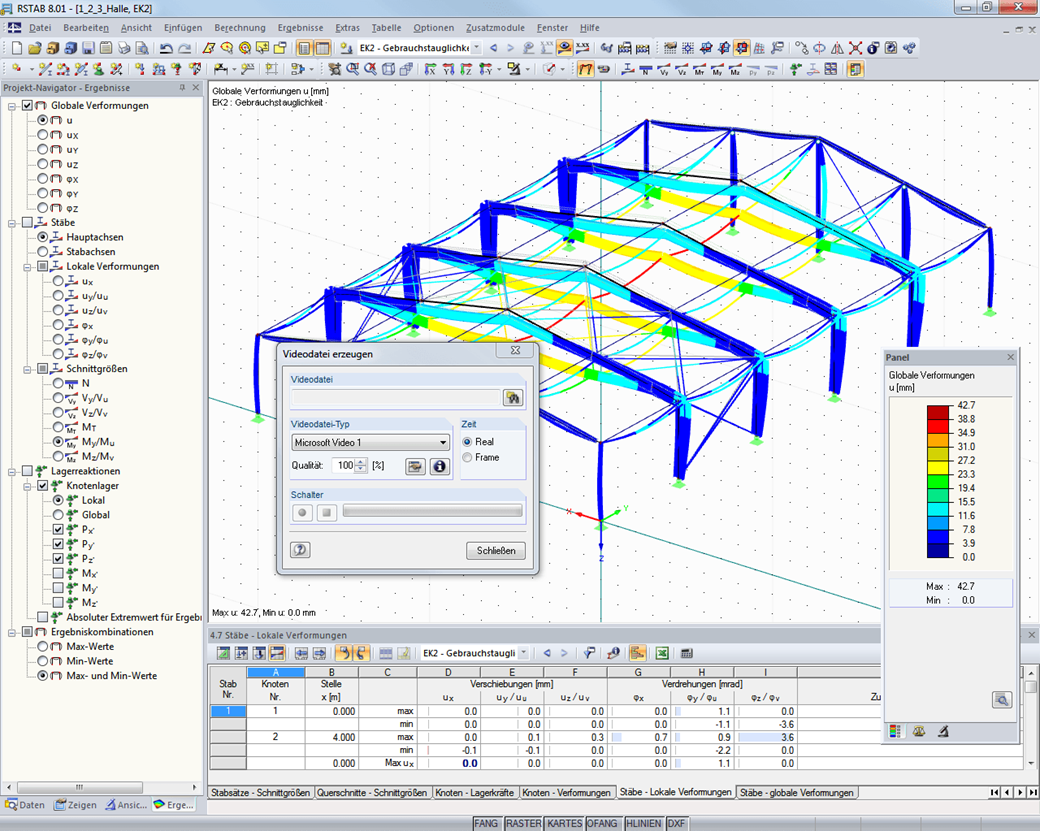

Visualization of Results
The results on a rendered model are represented by a number of colors in order to easily detect deformations such as member rotation. You can freely define the colors and the range of values in the control panel. Deformation diagrams can be animated and saved as a video file.
Detailed Result Tables
The first result table displays a summarized overview providing the equilibrium of forces in the structural system and the maximum deformations. Information about the calculation process is included as well. You can filter the result tables by specific criteria such as extreme values or design locations.
Mass Print of Graphics
There is a mass print function for the model data, loads, and results. It is possible to create graphics from different defined directions. For example, you can print all internal forces as an isometric view with a single mouse click.

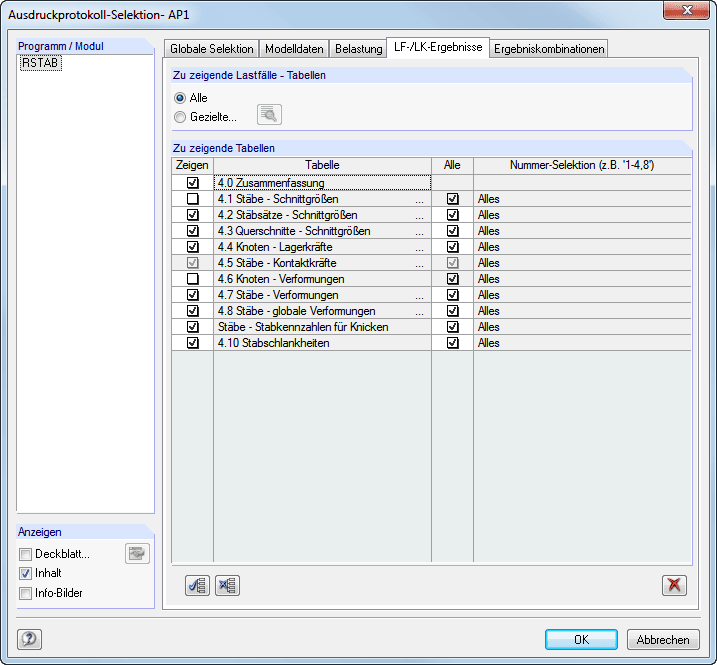

Printout Report Export in RTF or PDF File and in VCmaster
Various languages are available for the results included in a printout report: English, German, French, Spanish, Italian, Czech, Slovak, Hungarian, Polish, Dutch, Portuguese, Russian, and Chinese.
You can create further language versions individually.
It is possible to import additional texts as RTF files. Page numbering can be configured as well in order to use prefixes, for example. Furthermore, you can export the printout report as an RTF or PDF file as well as in VCmaster.
Printout Report Extent Management
The extent of a printout report can be individually adjusted by means of selection criteria. You can create printout templates based on already existing printouts and reuse them globally for all design projects. In the case of graphical print presentations, there is the option of title boxes.
