Editable GUI for Individual Adjustment
Intuitive Graphical User Interface
Models are created in the graphical user interface typical for CAD programs. By right-clicking the graphical or navigator objects, a shortcut menu appears, which facilitates creating or editing the objects.
The user interface is intuitive to use. Therefore, the model and loading objects can be created in a minimal amount of time.

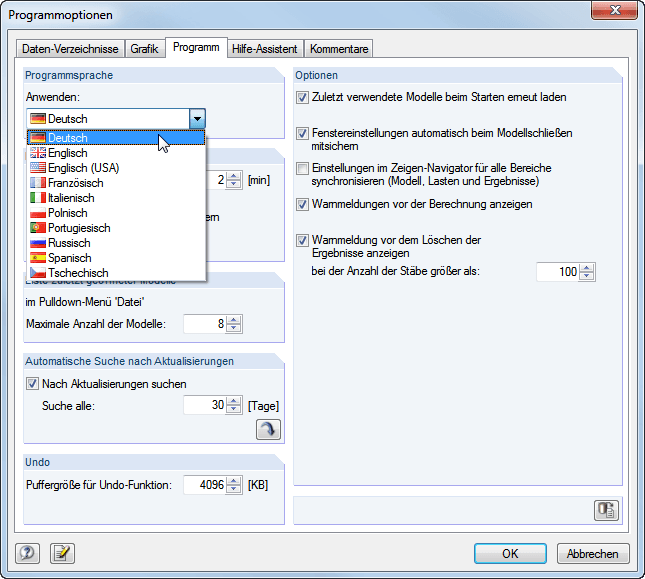

Multilingual Program Operation
It is possible to operate the program in the following languages: English, Chinese, Czech, Dutch, French, German, Italian, Polish, Portuguese, Russian, and Spanish.
The user-interface design of RSTAB is modifiable: There are nine different styles of graphical user interface to choose from; for example: Office 2007 Blue, Silver, Aqua, and Black.

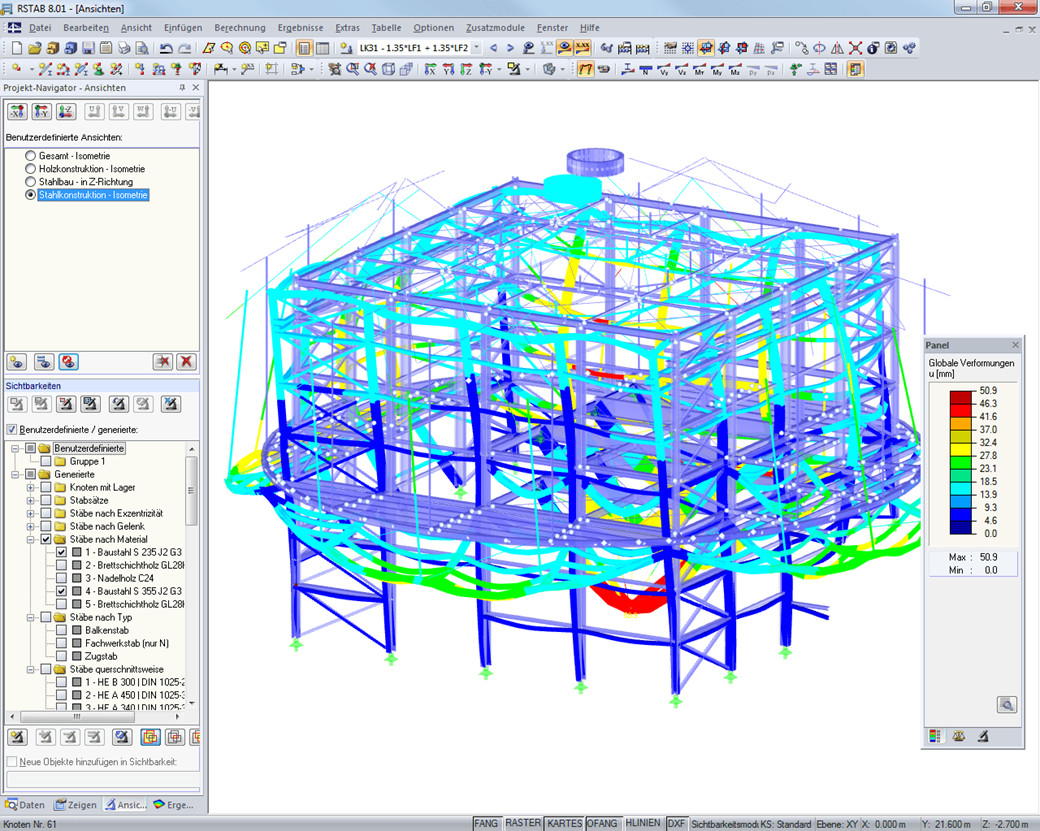

Project Navigator - Views
Project Navigator - Views allows you to easily generate various views in a few simple steps. Moreover, you can save and open them again at any time.

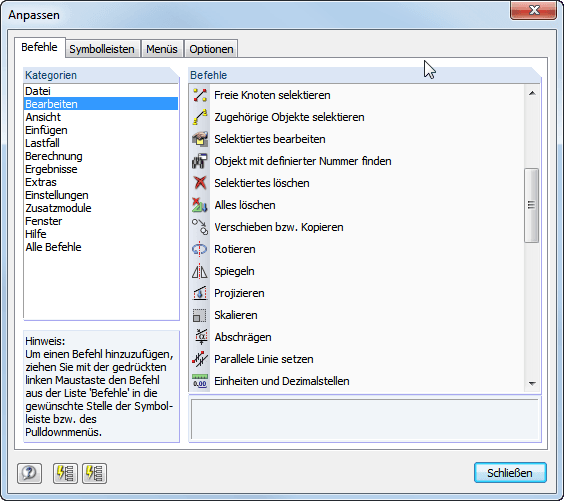

User-Defined Configurations
Program configuration menus and toolbars can be freely customized. It is possible to setup an arrangement of frequently used functions and tools for quick access. Tables, navigators, and toolbars can also be freely moved and docked. The default settings of the program can be restored at the click of a button.
In addition, it is possible in the Configuration Manager to set the graphic display properties, toolbars, and so on in a user-defined way and save them as your own configuration.

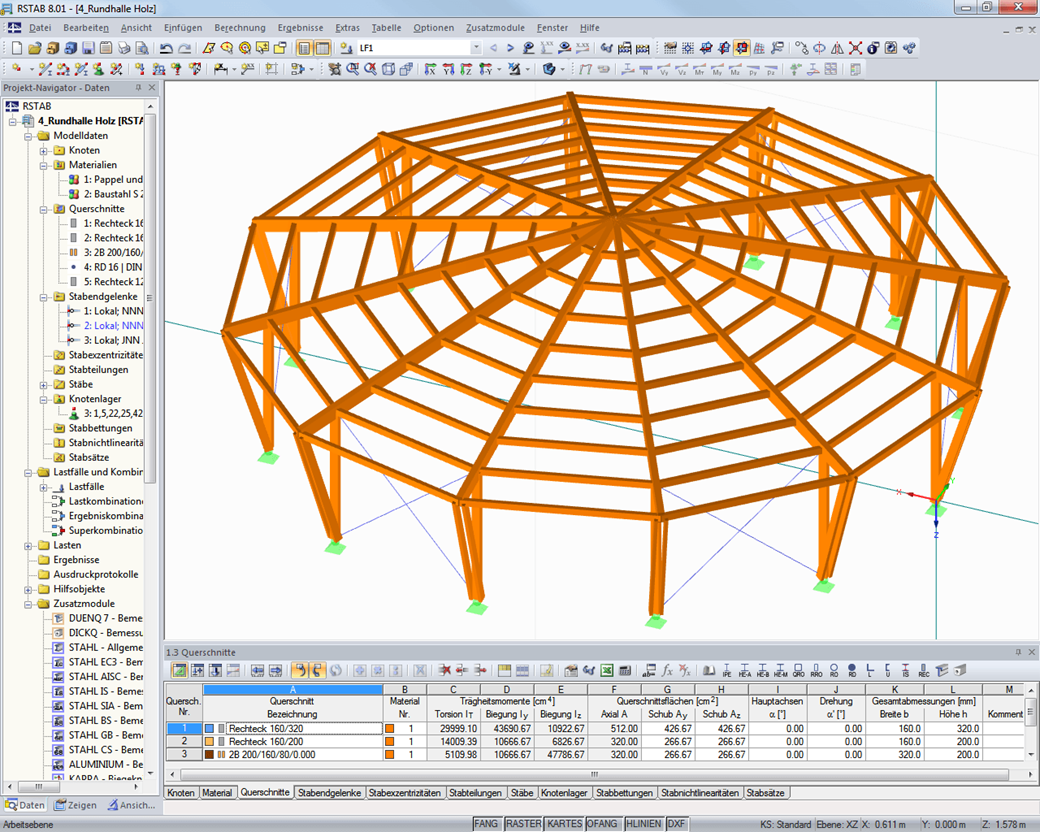

Photorealistic Visualization
Photorealistic visualization of the model in 3D rendering always provides immediate control of the input. Display colors can be freely adjusted and saved separately for screen and printout.

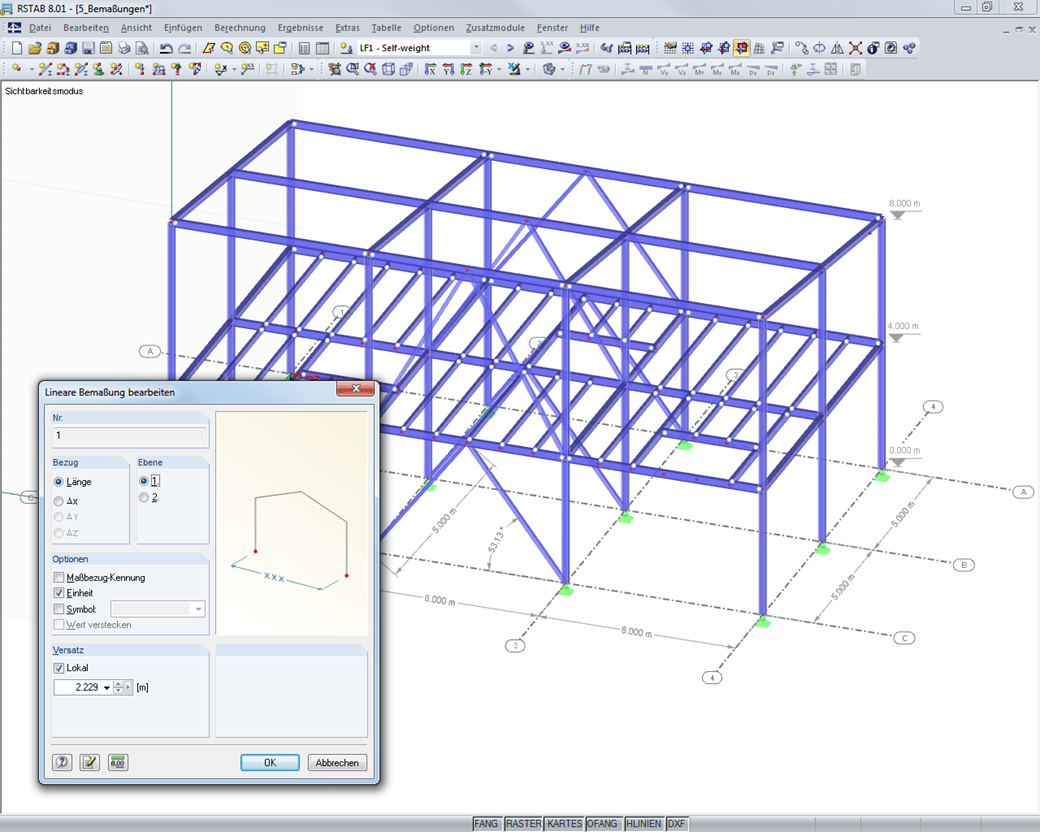

Displaying and Hiding Objects
It is possible to selectively display or hide various objects such as nodes, members, supports, and others. You can dimension the model by using lines, archs, inclinations, or height elevations. Freely created guidelines and comments facilitate the input and evaluation. You can also display or hide the guide objects individually.

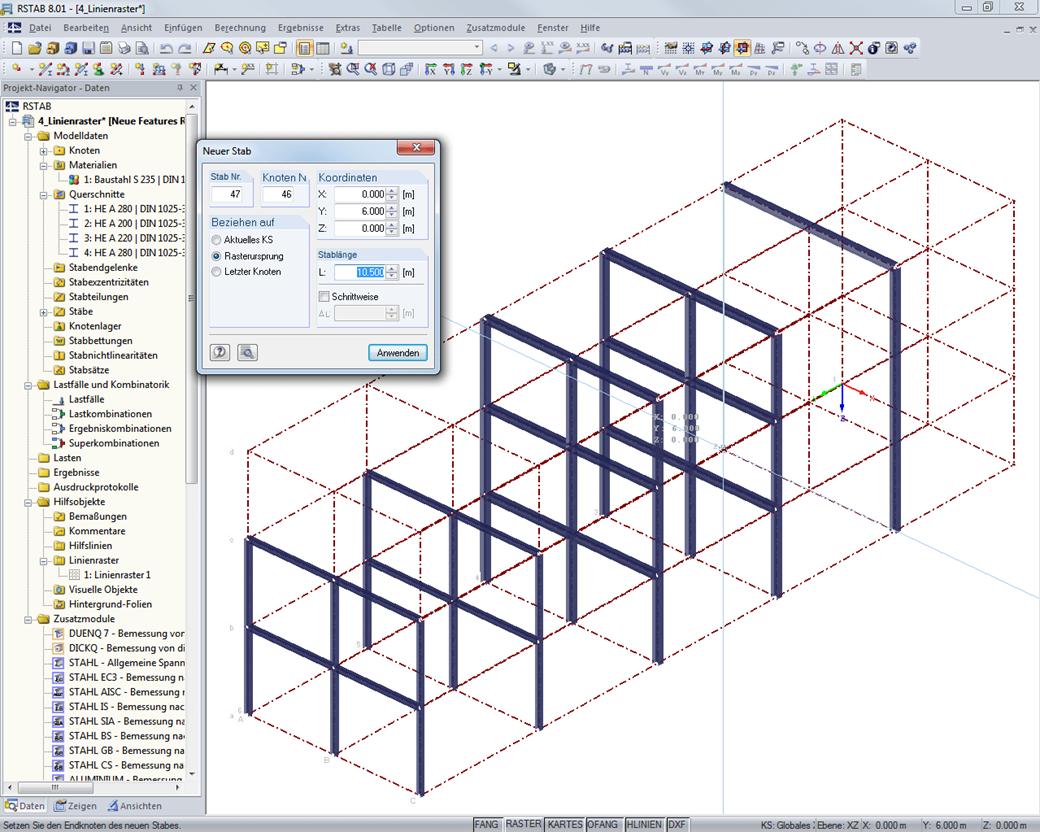

Line Grid
The fast creation of a line grid in the Cartesian coordinate system is now possible. This can optionally be labeled and dimensioned. Furthermore, you have the option to create spherical or cylindrical grids.
The grid can be rotated about one or more axes. The settings for the line grid can be saved and imported again later.
Global Unit Settings
A global dialog box manages the units of input data, loads, and results in RFEM/RSTAB as well as in all add‑on modules.
Take advantage of the helpful functions offered below: You can save your settings and import them again later. In this way, you can This requires, for example, to use different sections for steel and reinforced concrete structures.
