Full parameterization of a steel L-section connection geometry, modeled bolts with bonding plate.
A model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.

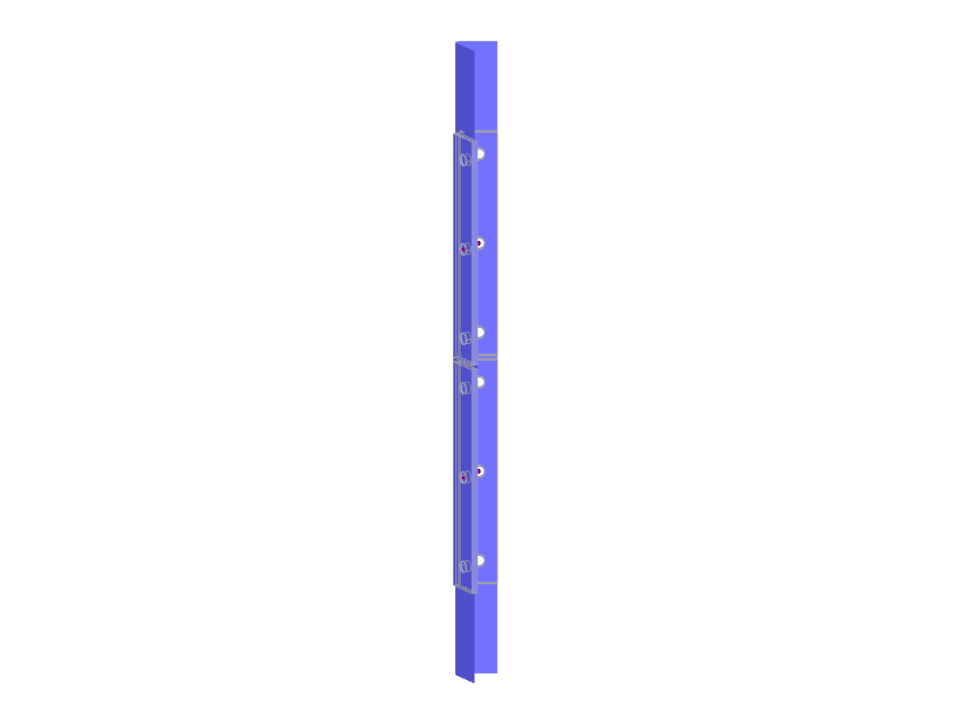

Angled L-Section Joint
Block parameters editable dynamically | |
Number of Nodes | 211 |
Number of Lines | 192 |
Number of Members | 24 |
Number of Surfaces | 118 |
Number of Solids | 8 |
Dimensions (Metric) | 0.140 x 0.138 x 1.441 m |
Dimensions (Imperial) | 0.46 x 0.45 x 4.73 feet |
Program Version | 5.27.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
