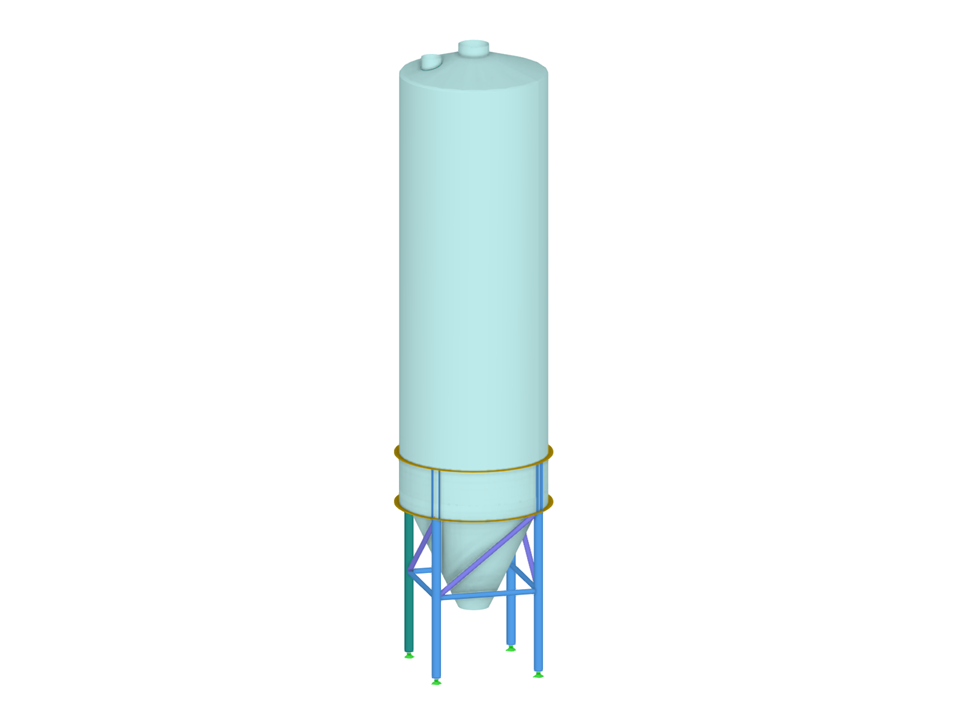

The steel silo used for simulating earthquake collapse using the Bullet Constraints Builder add-on in Blender.
Downloads
Earthquake Record CSV File | Bullet Constraints Builder
9.51 KB
Collapse of Silo Structure | Simulation Settings in Blender 2.79
13.81 MB
Collapse of Silo Structure | Rendering in Blender 3.5
12.47 MB
Steel Silo Structure
| Number of Nodes | 42 |
| Number of Lines | 68 |
| Number of Members | 24 |
| Number of Surfaces | 20 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 9 |
| Number of Result Combinations | 0 |
| Total Weight | 11.624 tons |
| Dimensions (Metric) | 4.724 x 18.898 x 4.724 m |
| Dimensions (Imperial) | 15.5 x 62 x 15.5 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
