This example was used to show how a member can be provided with an elastic foundation. This includes the influence of the subsoil in the modeling. Member elastic foundations can only be defined for the "Beam" member type.
Model Used in

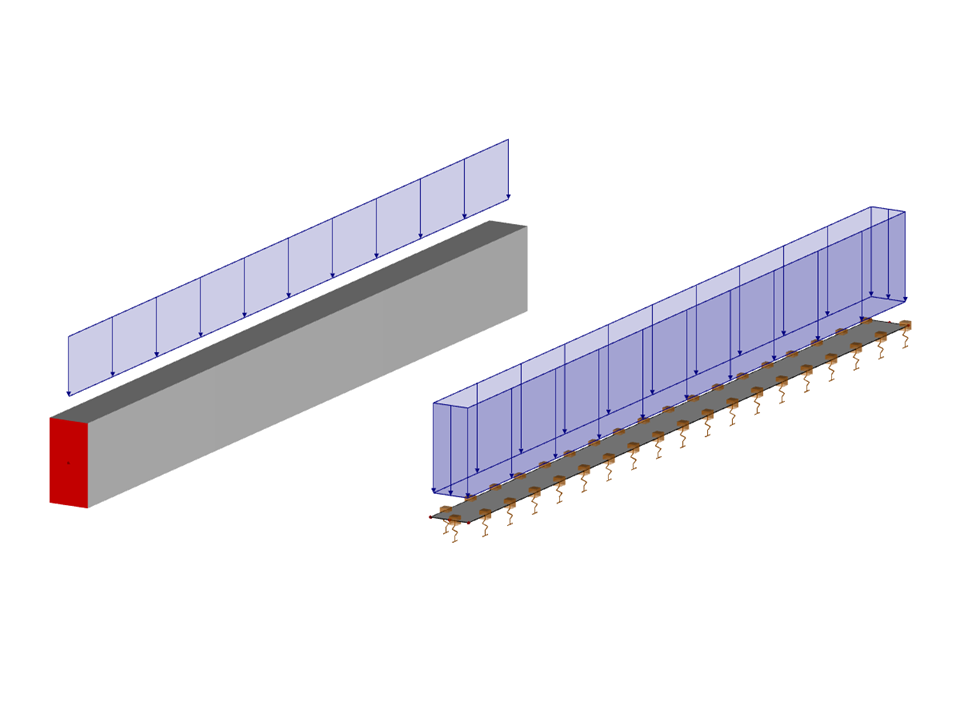

Strip Foundation with Uniformly Distributed Load
| Number of Nodes | 8 |
| Number of Lines | 7 |
| Number of Members | 1 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 25.000 tons |
| Dimensions (Metric) | 10.000 x 0.000 x 5.250 m |
| Dimensions (Imperial) | 32.81 x 0 x 17.22 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
