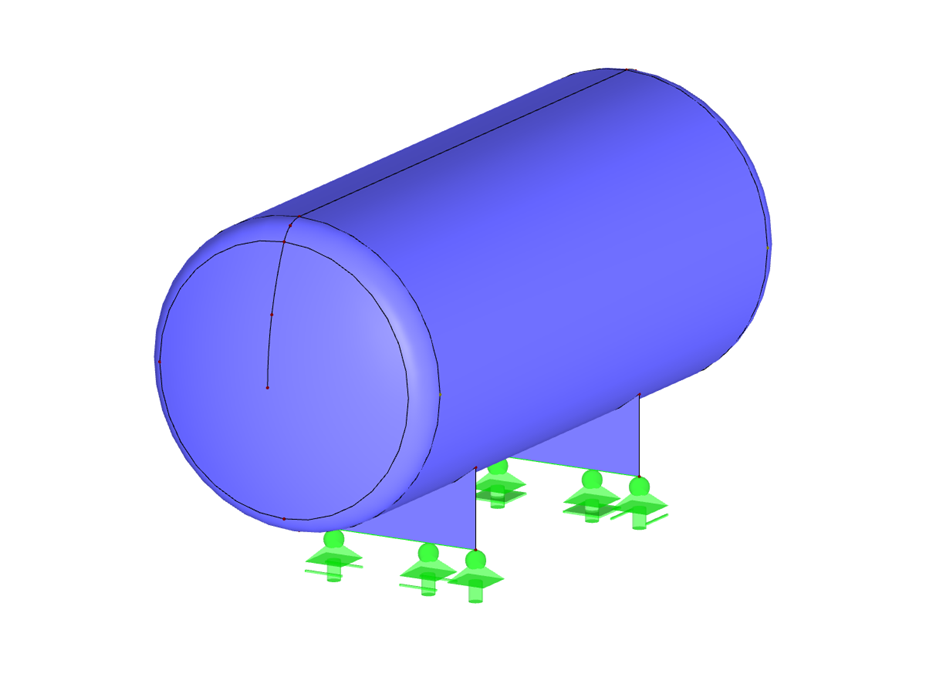

A fluid with a constant density in a homogeneous gravity field exerts a hydrostatic pressure on its comprehensive container wall according to Pascal's law.
This model can show a very efficient way to simulate a load case in RFEM using free rectangular loads.
Model Used in
Steel Tanks
| Number of Nodes | 32 |
| Number of Lines | 19 |
| Number of Surfaces | 7 |
| Number of Load Cases | 1 |
| Total Weight | 1.486 tons |
| Dimensions (Metric) | 2.714 x 4.475 x 2.722 m |
| Dimensions (Imperial) | 8.9 x 14.68 x 8.93 feet |
| Program Version | 5.23.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
