Rig of Sailing Ship
  • Description
  • Reviews (0)

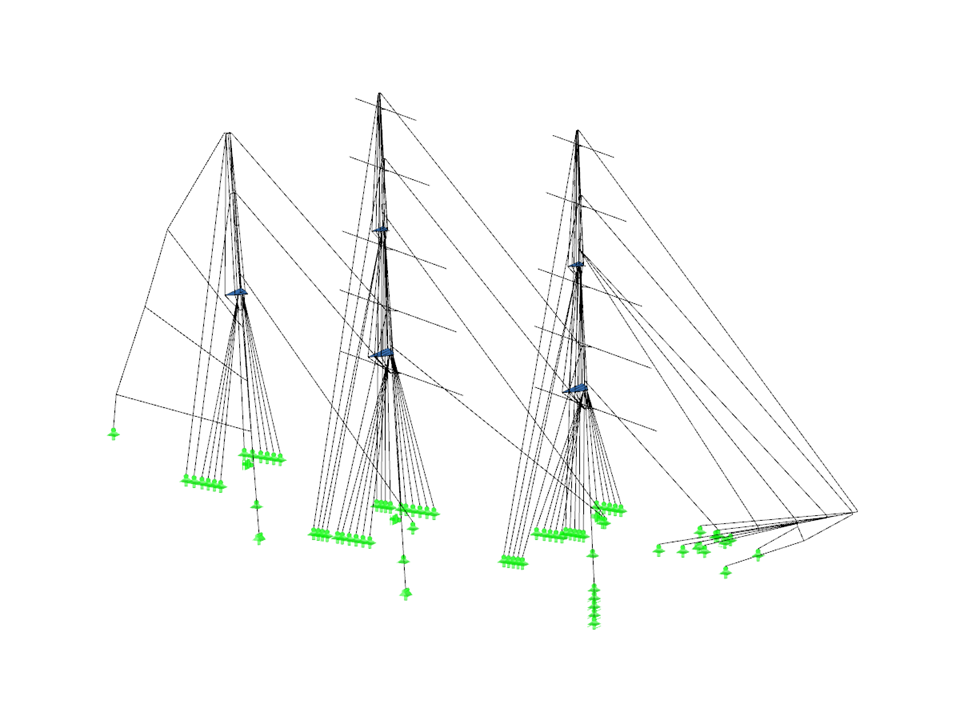

The model is used to simulate the rig of the Alexander von Humboldt II, which has been in operation since October 2011. The three-masted barque tall ship provides the opportunity for one-day and multi-day sailing trips as well as special training trips. It is the first new German tall ship to be built since the Gorch Fock, with the mast and hull constructed of steel. HB Hunte Engineering GmbH and Marine Engineering Wollert GmbH were responsible for the structure, using RFEM for the calculation of the rigging and the strength analysis.

Overall
0 out of 5 stars
This page has 0 user ratings.
5 star
4 star
3 star
2 star
1 star
(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Analysis of Sailing Ship Rigging

No Download Possible Customer Project / View Only
Number of Nodes 340
Number of Lines 423
Number of Members 422
Number of Surfaces 5
Number of Load Cases 35
Number of Load Combinations 12
Number of Result Combinations 3
Total Weight 25,793 t
Dimensions (Metric) 65.015 x 9.720 x 38.218 m
Dimensions (Imperial) 213.3 x 31.89 x 125.39 feet
Program Version 4.10.07
