Since 2013, a new S‑shaped pylon bridge has meandered across the Agger River near Lohmar, a town in West Germany. Due to its curving shape, the bridge, which reflects the course of the river, is perfectly integrated into the landscape.
However, the main reason for this routing is the hydraulic engineering and design. The longitudinal slope of the bridge girder is 6%, thus wheelchair users are able to cross the bridge without difficulty. Despite the slight slope, the bridge, including freeboard, lies high above the highwater level.
Design, Structural Analysis, and Construction Planning
Schaffitzel+Miebach Faszination Brücken GmbH, Germany
www.schaffitzel.de

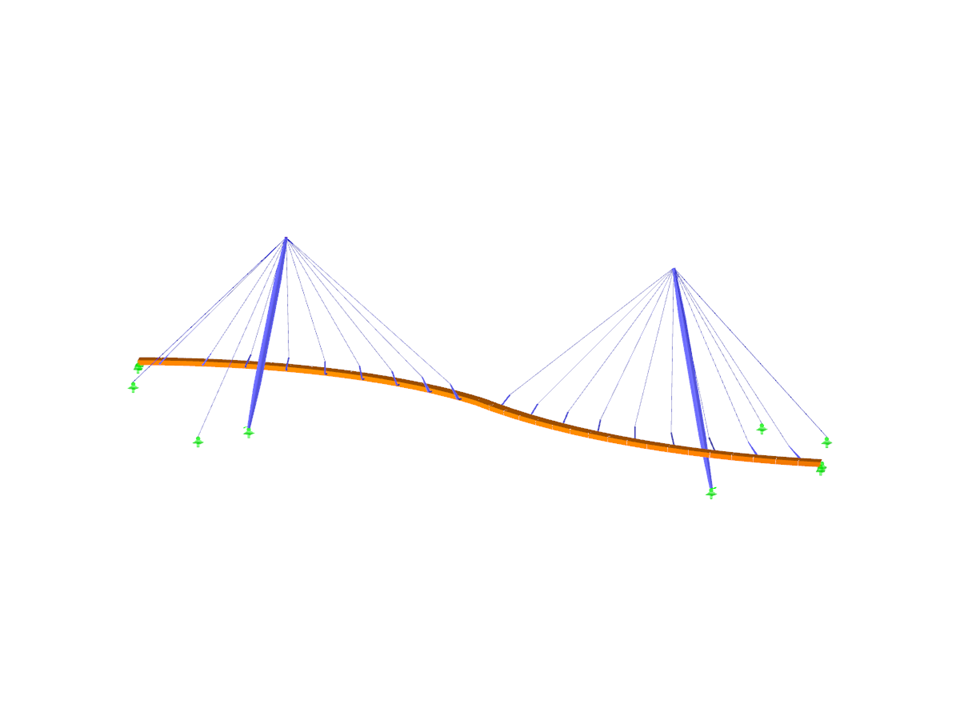

3D bridge model in RFEM (© Schaffitzel+Miebach)
However, the main reason for this routing is the hydraulic engineering and design. The longitudinal slope of the bridge girder is 6%, thus wheelchair users are able to cross the bridge without difficulty. Despite the slight slope, the bridge, including freeboard, lies high above the highwater level.
Design, Structural Analysis, and Construction Planning
Schaffitzel+Miebach Faszination Brücken GmbH, Germany
www.schaffitzel.de
3D bridge model in RFEM (© Schaffitzel+Miebach)
Pylon Bridge
No Download Possible
Customer Project / View Only
| Number of Nodes | 159 |
| Number of Members | 174 |
| Number of Load Cases | 82 |
| Number of Result Combinations | 2 |
| Total Weight | 43.817 tons |
| Dimensions (Metric) | 78.586 x 32.500 x 21.140 m |
| Dimensions (Imperial) | 257.83 x 106.63 x 69.36 feet |
| Program Version | 8.02.00 |
