The link between businessman Wolfgang Schweidtweiler from Pforzheim (Germany) and panorama artist Yadegar Asisi made it possible for a 100-year-old gasometer threatened by demolition to be used in such a spectacular way.
The former gas storage facility has been transformed into an extraordinary event area using a completely new interior design. A steel construction of around 214 ft with a diameter of 131 ft has been built on top of an approximately 20-foot-high massive ground floor. Since the end of 2014, the 360° panoramas of Berlin artist Asisi have been exhibited inside the building.
Structural Engineering | Steel Constructions
Ingenieurbüro Knapp, Gernsbach, Germany
www.tragwerk-knapp.de

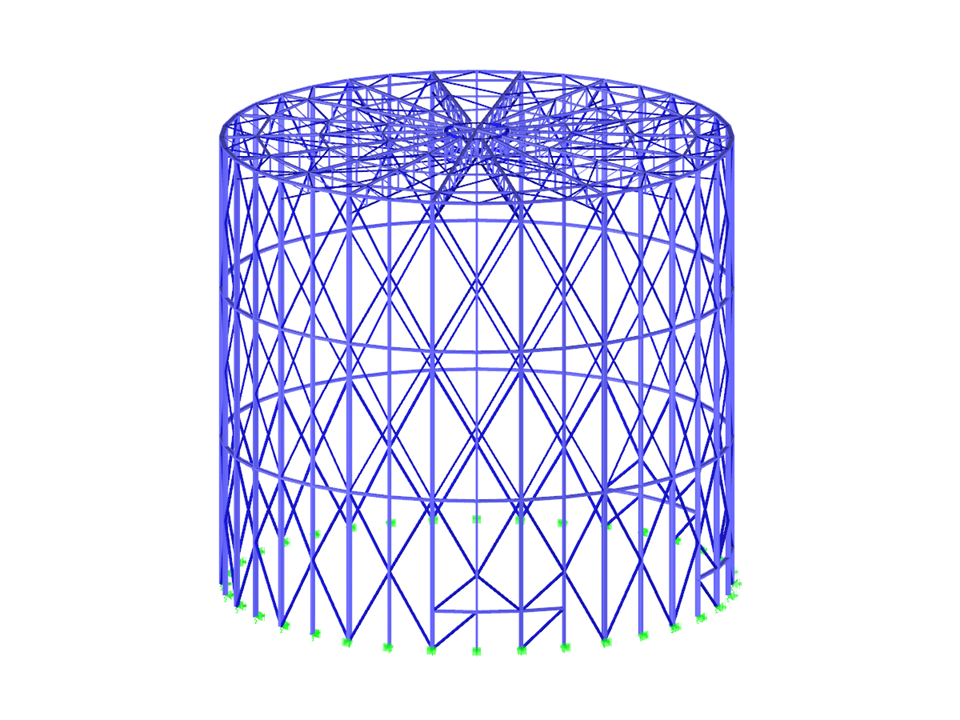

3D Model with Deformations in RFEM (© Knapp)
The former gas storage facility has been transformed into an extraordinary event area using a completely new interior design. A steel construction of around 214 ft with a diameter of 131 ft has been built on top of an approximately 20-foot-high massive ground floor. Since the end of 2014, the 360° panoramas of Berlin artist Asisi have been exhibited inside the building.
Structural Engineering | Steel Constructions
Ingenieurbüro Knapp, Gernsbach, Germany
www.tragwerk-knapp.de
3D Model with Deformations in RFEM (© Knapp)
Steel Structure
No Download Possible
Customer Project / View Only
| Number of Nodes | 610 |
| Number of Lines | 1385 |
| Number of Members | 1360 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 11 |
| Number of Load Combinations | 24 |
| Number of Result Combinations | 11 |
| Total Weight | 250.264 tons |
| Dimensions (Metric) | 39.000 x 35.885 x 39.000 m |
| Dimensions (Imperial) | 127.95 x 117.73 x 127.95 feet |
